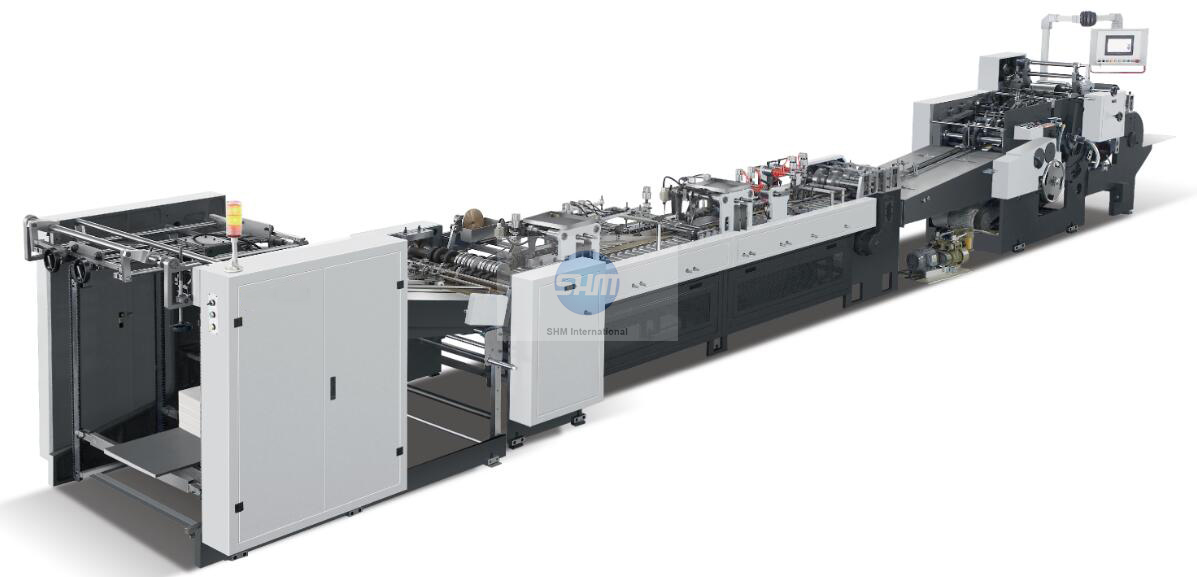

KL-220/700 FULL AUTOMATIC PAPER BAG MACHINE
MAIN FEATURES:
1. We set new standards to cut down the cycle time. Rapid cycle time improves capacity and lower production cost.
2. Our engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.
3. Brown paper, copperplate paper,white-plate paper(including laminting paper) is available on the machine
4. The machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.
5. Its technique process is about: the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device and then make one-side glue, folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line, open bottom, make glue and press together and finally output finished bag products.
MAIN SPECIFICATIONS:
|
Model |
KL-220/700 |
|
Width scope of bag face |
110-220mm |
|
Organ height |
50-120mm |
|
Canister length of the paper bag |
220-440mm |
|
Paper width |
320-700mm |
|
Paper length |
220-440mm |
|
Paper weight range with unit |
80-157g |
|
Speed |
60-100pcs/min |
|
Glue type |
Water glue |
|
Power |
8kw |
|
Weight |
10000kg |
|
Dimension |
11100x1500x1600mm |
