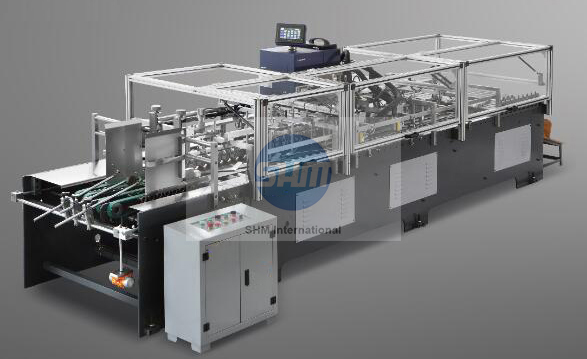

KL50A AUTOMATIC PAPER BAG BOTTOM GLUING MACHINE







INTRODUCTION:

Auto feed and adopt PLC control system,touch-screen operation,intuitive and simple;The gule spread quantity and the position of sizing glue can be adjusted of glued iniform to reduce the production cost.High efficiency,wide applicability and high precision.


MAIN SPECIFICATIONS:


Paper bag width

180-420mm (7.09-16.54inch)

Paper bag bottom/gusset

60-180mm (2.36-7.09inch)

Paper sheet length

290-600mm (11.42-23.62inch)

Paper types/weight

120-450gsm

Working speed

120pieces/min

Glue type

Hot melt glue

Power

3.5kw

Weight

1500kg

Dimension

5200x1220x1320mm
