SHOPPING BAG MACHINEKL50D Automatic Paper Bag Bottom Folding Machine

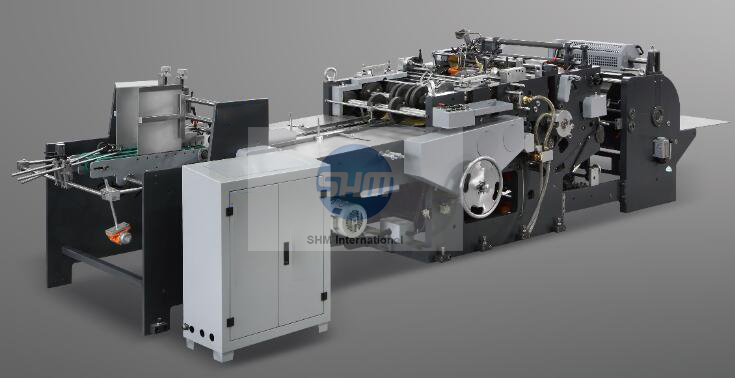

KL50D AUTOMATIC PAPER BAG BOTTOM FOLDING MACHINE

INTRODUCTION:

The machine is suitable to Brown paper,copperplate paper,white-plate paper, white paperboard and grey paperboard etc (including laminting paper)

MAIN SPECIFICATIONS:

Paper tube length	290-600mm (11.42-23.62inch)
Paper bag width	180-450mm (7.08-17.72inch)
Paper bag bottom/gusset	90-175mm (3.54-6.88inch)
Paper types and weight	kraft paper:100-300gsm art paper+pp:120-300gsm white cardboard+pp:170-250gsm grey paper board+pp:170-300gsm
Working speed	40-70pcs/min
Glue type	water glue
Power	5.0kw
Weight	5000kg
Dimension	5500x1500x1600mm
