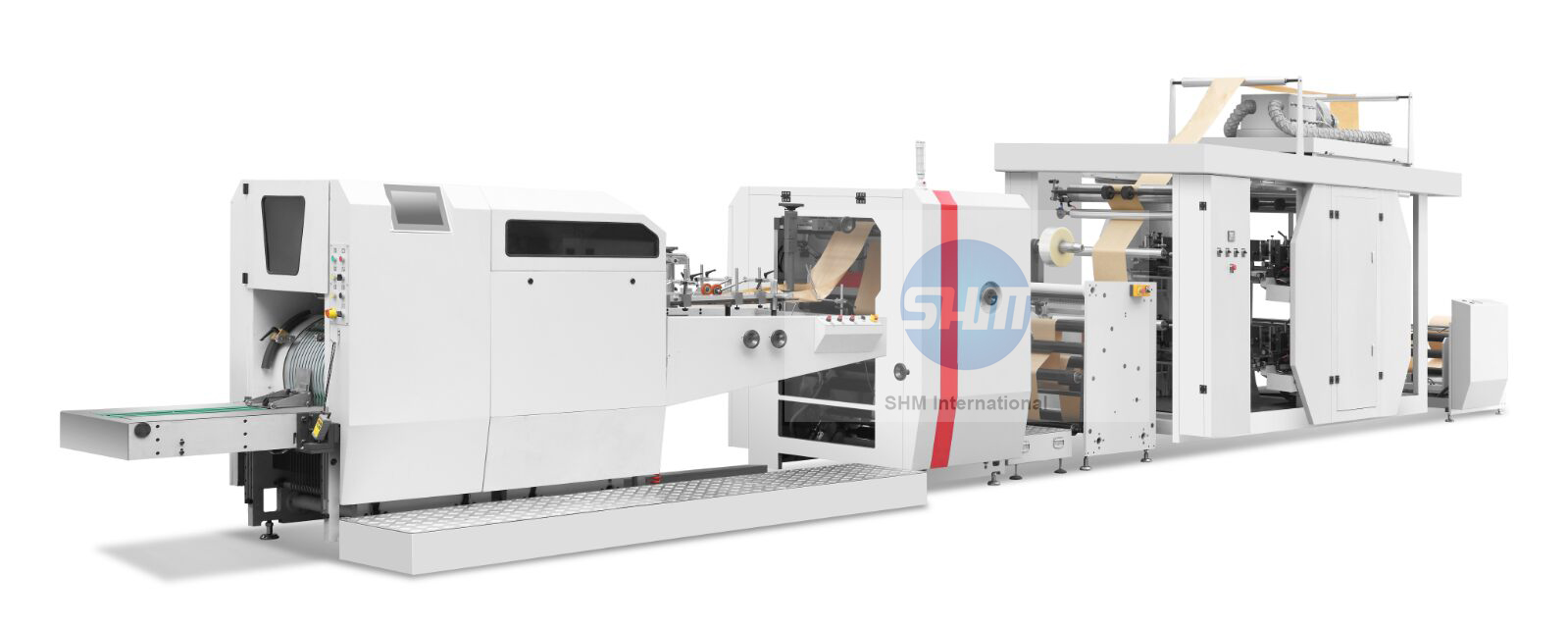

RZJD-G250J/G350J FULL AUTO V BOTTOM PAPER BAG MACHINE














INTRODUCTION:

Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and so on, bag making process consist of puncture, side gluing, side folding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in one time. Our machine have advantage of easy operation, high effeciency, more steady, it is an ideal machine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruit paper bag and environ­ment-friendly paper bag.


MAIN FEATURES:

1.Germany LENZE Touch screen human-computer interface, operate and control easily.
2.Germany original LENZE control,integrated with optical fiber, ensure high speed running steadily.
3.Available Germany LENZE Servo Motor Integrated With Germany Original SICK Rectifying Photo Sensor, ensure the printed paper length under tracking precisely.
4.Raw Material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control
5.Raw material unwinding EPC adopt Italy selectra, reduce adjustment time.


MAIN SPECIFICATIONS:


Model

RZJD-G250J

RZJD-G350J

Speed

30-300pcs/min

50-650pcs/min

Cutting length

110-460mm

165-715mm

Tube length

100-450mm

160-710mm

Bag width

70-250mm

70-320mm

Gusset width

20-120mm

20-120mm

Bag mouth height

15/20mm

15/20mm

Material thickness

35-80g/m²

35-80g/m²

Scroll width

160-780mm

160-960mm

Scroll diameter

1000mm

1100mm

Scroll core diameter

76mm

76mm

Power supply

3phase 380V 24kw

3phase 380V 32.1kw

Air pressure supply

≥0.12m³/min, 0.5-0.8MPa

≥0.12m³/min, 0.5-0.8MPa

Weight

4500kg

6500kg

Dimension

7100x3000x2200mm

6800x2900x2000mm

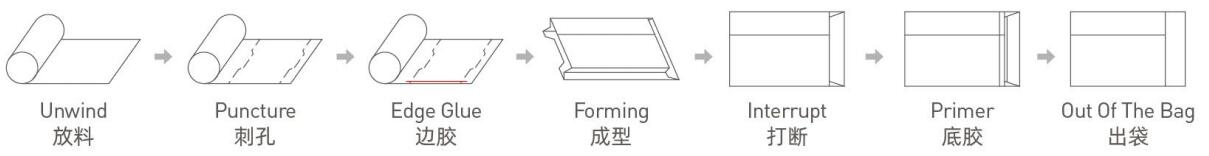

THE FLOW CHART:
