RB185A/RB185B AUTOMATIC RIGID BOX MAKER













INTRODUCTION:

Automatic Rigid Box Maker is a good equipment for making high-grade boxes because it is characterized by fine design, reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydraulic system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time. It is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, etc.


MAIN FEATURES:

1. Adopt new design of servo and pneumatic control structure to wrap the box, fast digital adjustment of sizes.
2. New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.
3. The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.
4. The concentrated oil system fully ensure each parts lubricating and the steady running of machine
5. Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products


MAIN SPECIFICATIONS:


Model

RB185A

RB185B

Box size

Max.400x600mm

Min.50x100mm

Max.400x600mm

Min.50x100mm

Paper size

Max.610x850mm

Min.95x180mm

Max.610x850mm

Min.95x180mm

Box height

12-185mm

12-120mm

Turn in depth

10-100mm

10-100mm

Paper thickness

100-400g/m2

100-400g/m2

Cardboard thickness

0.8-3mm

0.8-3mm

Precision

±0.1mm

±0.1mm

Speed

≤30pcs/min

≤30pcs/min

Air supply

50L/min 0.6Mpa

50L/min 0.6Mpa

Electric heating power

10kw

10kw

Power

20kw 380V 3phase

20kw 380V 3phase

Weight

6800kg

6800kg

Dimension

7000x5000x3600mm

7000x5000x3600mm





MAIN FEATURES:

1.Camera Positioning System
Three camera positioning and mechanical arm clamping box to achieve high-precision positioning.

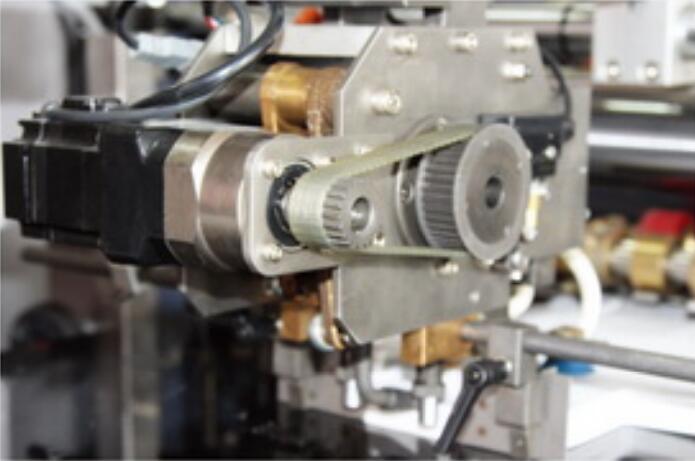

2.Digital Adjustment of Sizes
Adopt new design of servo and pneumatic structure to wrap the box,fast digital adjustment of sizes.




3.Servo Controlled Paper Feeder
New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.

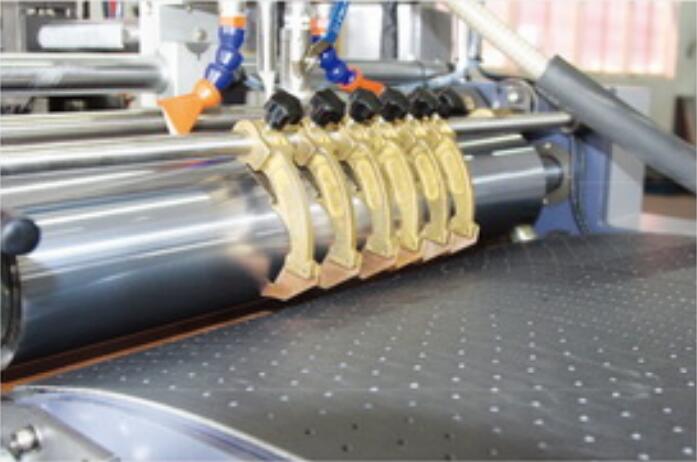

4.Line-touch Designed Copper Scraper
The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.




5.Concentrated Lubrication System
The concentrated oil system fully ensures each parts lubricating and the steady running of machine.




6.Glue Viscosity Meter (Optional)
Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
