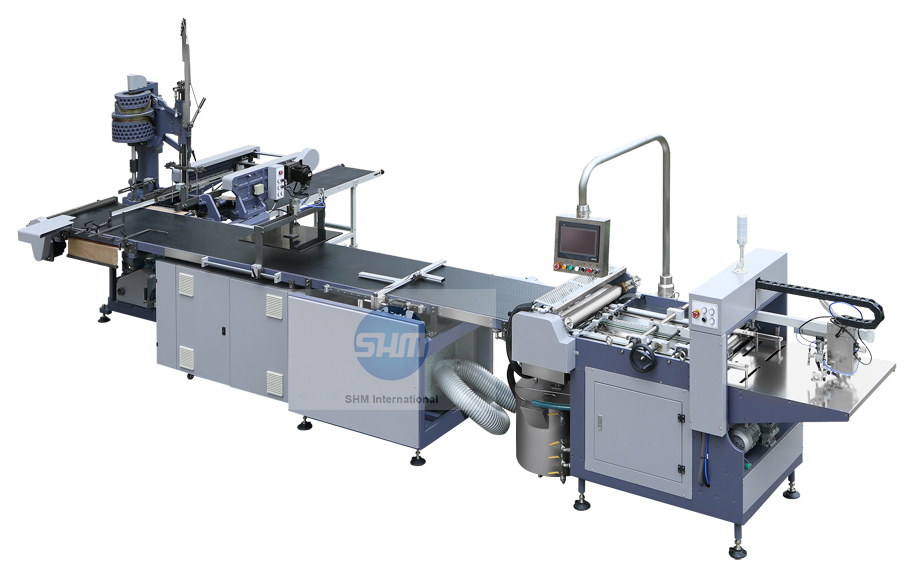

RB420D AUTOMATIC RIGID BOX MAKER
INTRODUCTION:
Automatic Rigid Box Maker is a good equipment for making high-grade boxes because it is characterized by fine design, reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydraulic system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time. It is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, etc.
MAIN FEATURES:
1. Suitable for production of small quantity
2. Available to small and medium enterprises, featuring in a lower investment but a higher return
3. More affordable and higher quality
4. Only 2 operators, saving the cost of 2-3 workers
5. Adopt simply constructed L-type positioning device, which reduces the working strength and makes the work much easier.
6. Servo controlled mechanical box gripping device is easily adjusted
7. Adopt lengthwise photoelectric tracking and servo rectifying device for positioning, which efficiently improves the precision of products
MAIN SPECIFICATIONS:
|
Paper size |
Max.580x800mm Min.100x200mm |
|
Paper thickness |
100-200g/m2 |
|
Cardboard thickness |
1-3mm |
|
Finished product(box) size |
Max.320x420x120mm Min.50x100x10mm |
|
Folded paper size |
10-35mm |
|
Precision |
±0.5mm |
|
Production speed |
¨Q28sheets/min |
|
Power |
13.6kw 380V 3phase |
|
Weight |
2500kg |
|
Dimension |
6800x2800x2500mm |
