首页 > PRODUCTS > PAPER PRODUCT SYSTEM > FOLDER GLUER MACHINEZH-880CT Folder Gluer

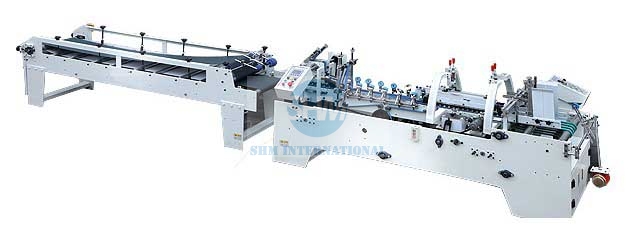

ZH-880CT FOLDER GLUER







MAIN FEATURES:

1. The machine adopts strengthened single-side driving system, for steady running and easy maintenance.
2. The motor adopts infinitely variable speed drive with power saving.
3. Delivery part adopts several thick belts with cooperation of shaking motor to ensure paper feeding in continuous, exact and automatic.
4. The machine has grinder in each side, which makes the glue more stable, firmly.
5. The machine is controlled by infrared photoelectric. It has automatic counting function.
6. The special boxes of size 35mm molded by 2-fold is also available.


MAIN SPECIFICATIONS:


Line speed

180m/min , Continuous adjustment

Suitable paper

200-400 g/ms, paperboard

Box forming

Straight line box

Fold method

2nd & 4th folds 180°

Paper feeding

Automatic feeding, grinding unit

Power

3.2kw

Dimension

6000x900x1200mm

Weight

1100kg
