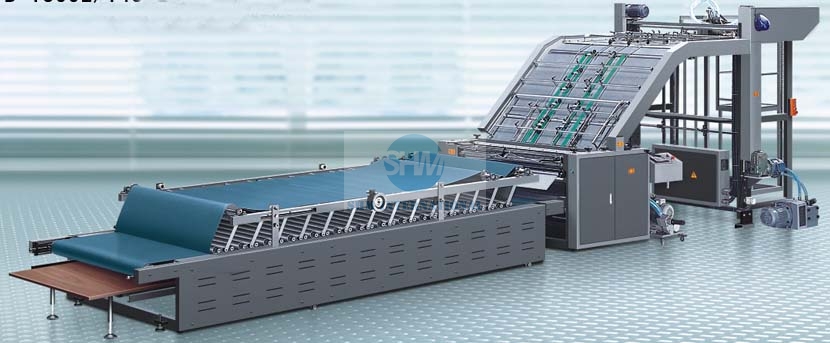

YB-1300E/1450E AUTOMATIC LAMINATING MACHINE







INTRODUCTION:

This machine is used for the laminating of color top sheets and corrugated paper. Adopts feeder feeding the top sheet and suction device sending the bottom sheet combines fully automated. Simple operation, easy maintenance; high speed and high precision.


MAIN FEATURES:

1. The vacuum suction-type feeding system can lead  the paper accurately into the machine; cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient
2. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
4.  Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm;
5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.
8. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
9. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
10. For 175g-500g of color cardboard and A / B / C / D / E / F corrugated laminating


MAIN SPECIFICATIONS:


Model

YB-1300E

YB-1450E

Size

Max.1300x1100mm

Min.350x350mm

Max.1450x1100mm

Min.350x350mm

Power

10kw

12kw

Speed

0-90m/min

0-90m/min

Weight

5000kg

6000kg

Dimension

10000x2000x2400mm

10000x2100x2400mm
