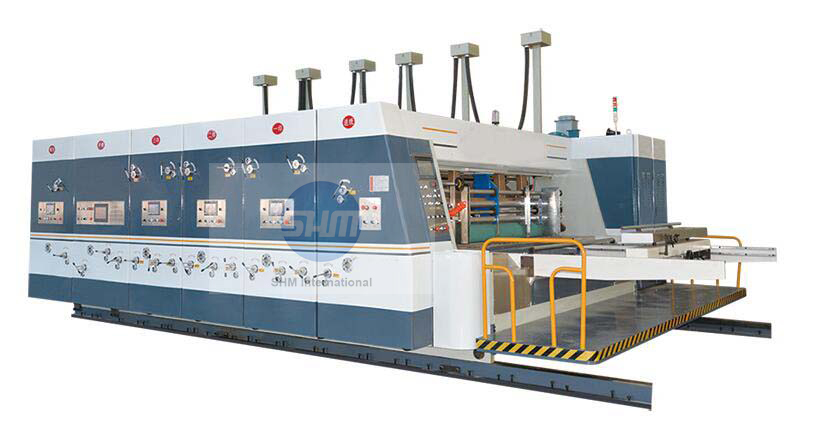

RYKC SERIES AUTOMATIC FLEXO PRINTING SLOTTING DIE-CUTTING MACHINE







MAIN FEATURES:

1. This machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.
2. Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.
3. Adopt high quality material and assembly part.
4. All cylinders and rollers are chrome plated for ideal hardness.
5. Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.
6. Use expansion sets tight link to reduce abrasion of the shaft, keep high precision of the machine in long year.
7. Adopt hanging structure, auto reset, quick changing order.
8. Each unit is equipped with Emergency Stop switch to ensure safety operation.
9. Using Self Locking gap adjustment device for ease operation.
10. Electric element, bearing, and pneumatic element all use international famous brand.
11. Mechanical lead edge feeder system,inverter adjust air volume,feeding is precision and steady.
12. The slot knife with phasing and box height adjustment device, the frequency changer control the dynamic 360 degree adjustment.
13. The slot knife seat lateral movement uses the electric control, in fast and accurate.
14. Rubber roller automatic displacement device,prolong the service life .
15. Quick replacement rubber anvil is from abroad,it is easy for replacement and wear-proof.
16. Pull roller puick lateral moving mechanism.
17. Equipped with automatic paper stacking machine


MAIN SPECIFICATIONS:


Model

RYKC18

RYKC22

RYKC25

Max machine speed

120pcs/min

100pcs/min

100pcs/min

Max feeding size

1880x3200mm

2260x3400mm

2570x3600mm

Skip feeding size

2200x3200mm

2700x3400mm

3100x3600mm

Max printing area

1800x3200mm

2200x3400mm

2500x3600mm

Min feeding size

500x890mm

550x890mm

600x890mm

Max slotting depth

490mm

580mm

660mm

Registration precision

≤±0.6mm

Printing plate thickness

6mm

Paper thickness

2.5-12mm

Min slotting interval

 Normal

190x190x190x190mm

 Reverse

310x110x310x110mm
