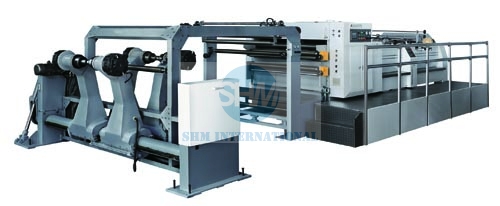

HSCJ-B SERIES SERVO-DRIVEN HIGH SPEED SHEET CUTTER













MAIN FEATURES:

1. Electronic control system
The repair man-machine interface and Siemens S7-200 processor communication, mainly used for the input of production data, monitoring of equipment operating status and system fault alarm indication. The rotation Hengdao Japan Yaskawa Sigama-!! SGDM drive fast operation and accurate positioning, based on the production of man-machine interface input parameters and the actual speed from the traction roller encoder feedback.
2. New leveling effectively
Effectively remove the curl of the roll to make the paper more flat, more conducive to the paper roll tension stability.
3. Automatically adjust the angle
The precision of the stepper motor is controlled by the length of the cut sheet precision screw adjustment the inclination of the knife group, to effectively ensure the straight angle of the edge of the cut sheet, reducing waste time manually adjust the angle of error rate and adjustment.
4. The delivery section using automatic set paper equipment
Lift stacked set paper sets, the paper stack to a considerable height. The stacker table has three sides shake finishing function, the side of the motor to drive the paper, the paper, on both sides by high-quality pneumatic by hand wheel to adjust the amplitude of the paper to improve the simplicity and safety of the operation.


MAIN SPECIFICATIONS:


Model

HSCJ-1100B/1400B/1700B/1900B

Paper weight scope

60-550g

Cutting paper method

The up knife for rotary cutting and bottom knife fixed

Reel diameter

Max.1650mm (65”)

Power

25kw

Paper sheet

Max.1100mm/1400mm/1700mm/1900mm

Cutting length

430-1450mm/430-1650mm

Cutting accuracy

+/-0.5mm

Cutting speed

Max.300cuts/min

Cutting meter speed

Max.300m/min
