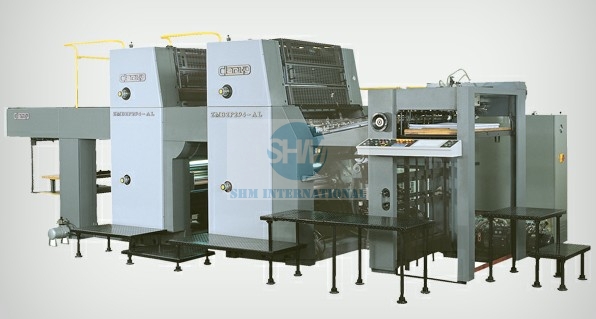

ZMB2P294-AL TWO-COLOR SHEET-FED OFFSET PERFECTOR







MAIN FEATURES:

1. Double Size Blanket (Impression) Cylinder
2. Double-row TRB (Tapered Roller Bearing) Equipped for All Cylinders
3. Separate Adjustable Plate Clamp for Quick Register Correction;
4. Centralized Control through Touch Screen;
5. Patented In-feed Swing Arm for Stable Performance and Accurate Register
6. Non-stop Fine Adjustment for Front Lay
7. Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Control Possible For Flexible Operation
8. Gripping Force Adjustable For All Transfer Grippers
9. Stainless Steel Sprayed Plate Cylinder
10. Centralized Automatic Lubricating System


MAIN SPECIFICATIONS:


Max sheet size

650 × 940mm

Min sheet size

393 × 546mm

Max printing area

640 × 920mm

Plate size

720 × 960 × 0.3mm

Max printing speed

10000sph

Sheet thickness

0.04- 0.20mm

Feeder stacking capacity

1200mm

Delivery stacking capacity

1000mm

Machine power

35kw

Weight

22000kg

Dimension

7008 × 3220 × 2645mm
