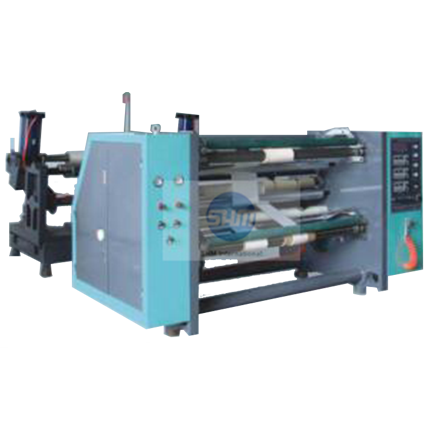

WZFQ1100C High Speed Slitting Machine
MAIN FEATURES:
1. This machine use automatic taper tension, central surface reeling.
2. Frequency converter timing for main machine，keeping speedup and stable operation.
3. It has the functions of automatic metering, automatic alarm, etc.
4. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.
5. It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit (or liquid press style substance system)
6. Equipped with automatic waste film blowing device by circle blade.
7. Automatic material inputting with pneumatic, matched with inflatable.
MAIN SPECIFICATIONS:
| Unwinding width | Max.1100mm |
| Unwinding diameter | Max.￠1400mm (￠600mm) |
| Slitting width | Min.20mm |
| Rewinding diameter | Max.￠500mm |
| Speed | 10-160m/min |
| Precision | ±0.2mm |
| Power | 7.0kw |
| Suitable power supply | 380V 50Hz |
| Weight | 2100kg |
| Dimension | 2850x2150x1350mm |
