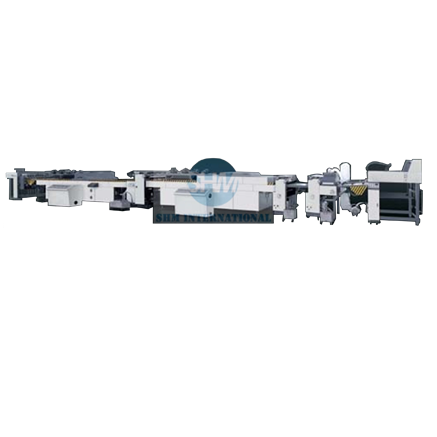

KP-1000/1200 Automatic UV Coating Machine (TC)
MAIN FEATURES:
1. High speed feeder, about 8000 sheets/hour.
2.Equipped with water cleaning unit as standard equipment, removing the remaining dust after printing. Make the paper surface evenness and smoothness after coated.
3. Equipped with automatic constant temperature IR light box.
4. Automatic constant temperature UV tank, independent red-tipped air suction import conveyor belt, pneumatic scrape oil knife.
5. Low noise and smooth delivery with its upper and lower pressing track design.
6. Pneumatic sheet jogging device knocking up both sides of sheet and keep the paper stable.
MAIN SPECIFICATIONS:
| Model | KP-1000 | KP-1200 |
| Sheet size | Max.940x940mm Min.340x406mm | Max.940x1140mm Min.340x406mm |
| Coating width | Max.950mm | Max.1150mm |
| Paper thickness | 250-600gsm | 250-600gsm |
Paper thickness (with air knife) | 105-600gsm | 105-600gsm |
| Speed | Max.45m/min | Max.65m/min |
| Weight | 8000kg | 9000kg |
| Power | 89kw | 89kw |
| Dimension | 17000x2100x1940mm | 17000x2300x1940mm |
