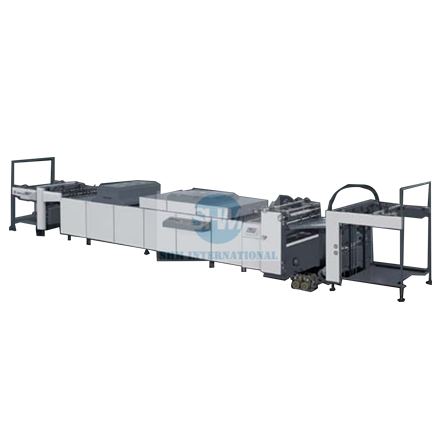

KP-1000/1200J Automatic UV Coating Machine (TC)
MAIN FEATURES:
1.The machine adopts the memory type air knife which is controlled by PLC system, which can guarantee the machine is suitable for 80g or above paper smoothly coating.
2.The machine adopts measuring roller frequency control, different coating quantity can be controlled by different linear control.
MAIN SPECIFICATIONS:
| Model | KP-1000J | KP-1200J |
| Coating width | Max.950mm | Max.1150mm |
| Paper thickness | 105-600gsm | 105-600gsm |
| Work speed | 25-60m/min | 25-60m/min |
| Weight | 5000kg | 5500kg |
| Power | 72kw | 72kw |
| Dimension | 12000x1760x1600mm | 12000x1960x1600mm |
