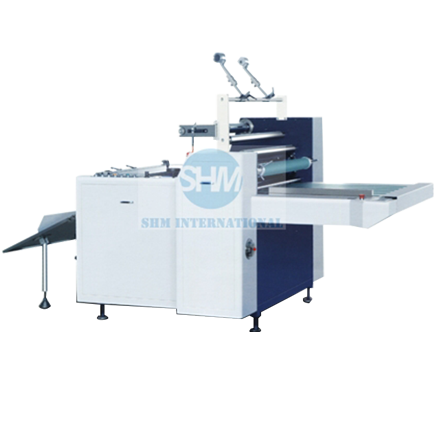

YFM920 Pre-glue Film Laminating Machine (TC)
MAIN FEATURES:
Using converter to control speed, running steady.
Due to the machine controlled by electric appliances, so it only needs one operator to operate.
The main machine uses oil to keep constant temperature. So the temperature of heating roller’s surface is average.
Large diameter mirror heating roller, temperature lasting not easily erosion, production speed is high.
Lord pressure roller uses high temperature resistant material, quality is stable.
Manual oil pressure supply system, secure pressure step up and down.
Film slitting and punching to be equipped.
MAIN SPECIFICATIONS:
| Paper width | Max.650x920mm |
| Working pressure | 10-16MPa |
| Speed | Max.30m/min |
| Film width | Max.880mm |
| Power | 15.7kw |
| Paper Thickness | 105-500g/m2 |
| Weight | 1400kg |
| Dimension | 3000x1740x1750mm |
