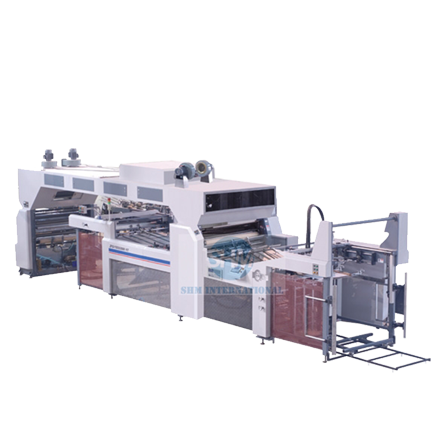

ZFQ-1100 Automatic Film Laminating Machine (TC)
MAIN FEATURES:
Suitable for Glue-less film, Polypropylene film, Polyster film.
Adopting heating roller with oil and insure keep constant temperature.
The film laying device adopts magnetic powder stabilizer, and adopts automatic tension-adjusting control.
The machine case is with quality material, with high strength and low deformation, and so it has long service life and its press-roller and baking channel adopt automatic constant –temperature control.
This machine is suitable for both water cold glue and red glue.
It has an automatic punching device.
MAIN SPECIFICATIONS:
| Sheet size | Max.1040x1040mm Min.360x360mm |
| Paper thickness | 100-450gsm |
| Film coating temperature | 60-130℃ |
| Film coating speed | 5-45m/min |
| Laminating pressure | 5-25MPa |
| Power | 38.7kw |
| Weight | 3600kg |
| Dimension | 10110x2100x2500mm |
