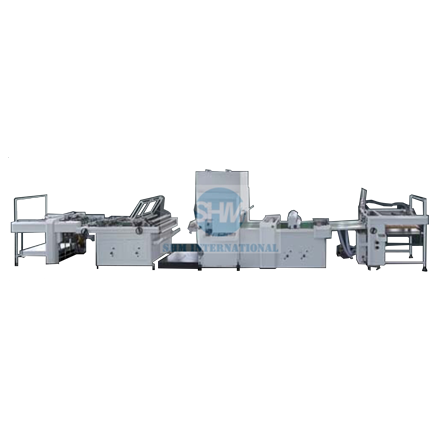

ZFM-105 Automatic Laminating Machine (TC)
MAIN FEATURES:
Automatic pre-stack feeding with pre-stack feeding table and non-stop device, the front and rear errors ,the left and right errors are not larger than 2mm.
Wheel brush and electric heating powder removing devices, with an environment-friendly filter, The reversal wheel brush design ensures the powder removing, in order to prevent paper from being deviated.
The machine adopts ceramic roller coating, hot roller and pressure roller are hot-water constant temperature. Pressure roller and laminating roller are both automatically controlled, the tension of the film is automatically controlled.
The paper drawing unit has a thin paper unfolding function and a six-blade structure.
MAIN SPECIFICATIONS:
| Paper size | Max.1040x1040mm Min.350x350mm |
| Suitable paper | 105-500gsm |
| Laminating width | Max.1040mm |
| Film diameter | 600mm |
| Work speed | 10-60m/min |
| Feeding pile height | 1060mm |
| Stacker pile height | 1060mm |
| Weight | 7000kg |
| Dimension | 13400x2800x2500mm |
