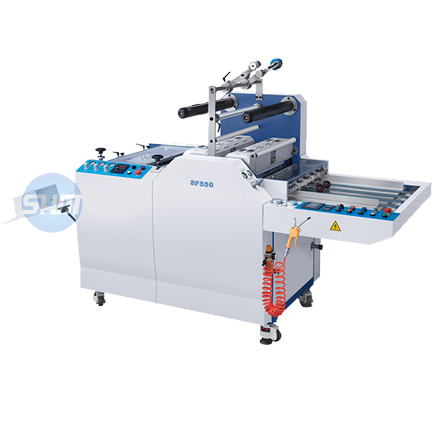

SF-330/550/630 Semi Automatic Laminating & Embossing Machine
MAIN FEATURES:
Electromagnetic heating system
Automatic hydraulic pressure system, pneumatic front lay, pneumatic separation, slope stacker
Two air expansion shaft, can application for rewinding
MAIN SPECIFICATIONS:
| Model | SF-330 | SF-550 | SF-630 |
| Paper size | Max.330mm | Max.550mm | Max.630mm |
| Paper thickness | 105-500gsm | 105-500gsm | 105-500gsm |
| Laminating speed | 0-30m/min | 0-30m/min | 0-30m/min |
| Power | 15kw | 15kw | 15kw |
| Weight | 750kg | 1000kg | 1100kg |
| Dimension | 3000x930x1630mm | 3000x1150x1630mm | 3000x1230x1630mm |
