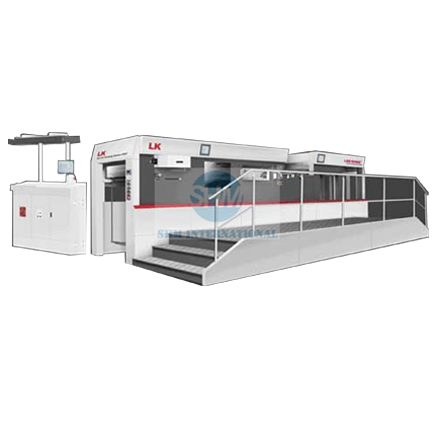

LK106MT Automatic Foil Stamping and Die Cutting Machine
MAIN FEATURES:
This machine adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
It could die cutting, hot stamping and pressing convex on different after printing packaging products, such as higher than 90g/㎡ paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper, plastic card, PVC and so on.
Superior ability to adapt and convenient operation which make machine work stable and safety when machine speed reach 7500 sheets per hour. This machine will provide you to enjoy the comfortable operation and faster return on investment.
MAIN SPECIFICATIONS:
| Sheet size | Max.1060x760mm Min.450x370mm |
| Die cutting size | Max.1050x750mm |
| Stamping size | Max.1030x730mm |
| Feeding pile height | Max.1350mm |
| Delivering pile height | Max.200mm |
| Working pressure | Max.1300T |
| Power | 46kw |
| Paper range | 90-2000g/㎡(cardboard) |
| 0.1-2mm(cardboard) | |
| ≤4mm(corrugated) | |
| Foil longitudinal diameter | Max.250mm |
| Zones individually heated | 20 |
| Working speed | Max.7500s/h |
| Weight | 17000kg |
| Gripper margin | 8-17mm |
| Air requirements | 0.6Mpa, ＞0.37m³/min |
| Dimension | 6050x4200x2260mm |
