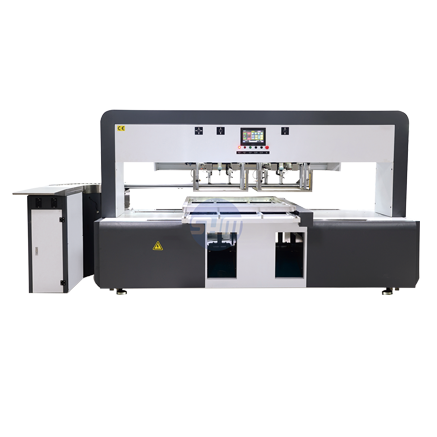

102AII Stripping Machine
MAIN FEATURES:
Dual-head blanking system
Heavy-Duty, quality-built gantry structure main frame
Frame style supporting base for precision blanking action ensuring damage free loads
Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement
Operator friendly touch screen for quick and simple programing
Manual hand picking of blanks once stacked
Safety barrier sensor to stop the blanking action should the sensor detect an obstruction. Operator can only hand pick the blanks once each cycle is completed.
MAIN SPECIFICATIONS:
| Sheet size | Max.1020x960mm (40.15"x37.8") Min.300x300mm (11.8"x11.8") |
| Blank size | Max.450x350mm (17.7"x13.8") Min.30x30mm (1.18”x1.18”) |
| Working pressure | 2.5T |
| Pressure | 8bar |
| Pile height | 50-85mm (2"-3.3") |
| Speed | 1-18cycles/min |
| Power | 7kw |
| Electrical power requirement | 220V 3phase 60Hz 17A |
| Weight | 2000kg (4,409 lbs) |
| Dimension | 3400x2300x2000mm (11.15’x7.55’x6.56’) |
