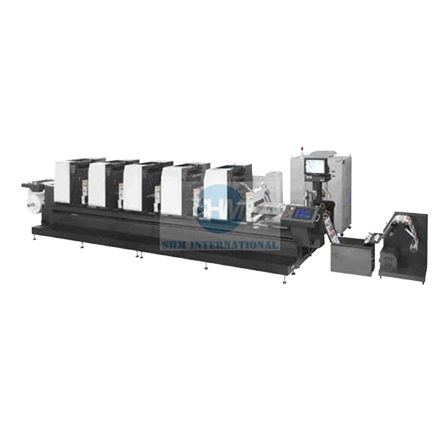

ZTJ-330 Intermittent Label Press (ZT)
MAIN FEATURES:
Servo driven: Independent servo driven system in each unit to guarantee stable register at high printing speed.
Printing unit: Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quality.
Pre-register system: Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
Register system: Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
Vacuum backflow control unwind: Vacuum back flow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
Joystick-less: Fully automatic operation system including pressure adjustment, inking roll wash-up, roller impression, etc.
Easy to operate: Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
Control system: Apply electronic component from famous international brand to guarantee long term reliable operation.
Lubrication system: Centralized automatic lubrication.
MAIN SPECIFICATIONS:
| Max web width | 330mm |
| Max printing width | 320mm |
| Printing repeat | 100-320mm |
| Thickness of substrate | 0.1-0.3mm |
| Machine speed | 30-200rpm(50m/min) |
| Max unwind diameter | 700mm |
| Max rewind diameter | 700mm |
| Pneumatic requirement | 7kg/cm² |
| UV capacity | 4.8/kw/colors 4.8kw/color |
| Total capacity | 30kw/6 colors without UV |
