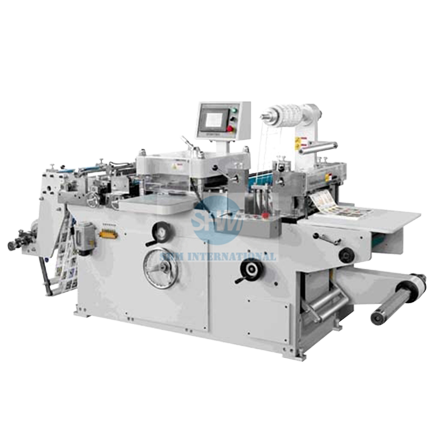

MQ-320 Fully Automatic Roll-roll Continuous Adhesive Label Die Cutter
MAIN FEATURES:
This is a high precision flat bed die cutter.
Material feeding & cutting are controlled by servo motor.
Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor.
Laminating, die cutting, waster removal, sheeting or rewinding can be completed in one pass.
It is suitable for cutting pressure sensitive label and holographic anti-counterfeiting label.
It is a best, efficient partner for adhesive label printing machine and hologram diec utter and is also applicable for label house, electronic parts die cutting and adhesive tape sectors.
MAIN SPECIFICATIONS:
| Cutting speed | 20-170 cycle/min |
| Max unwind diameter | 500mm |
| Max web width | 320mm |
| Max die cutting width | 300mm |
| Max die cutting length | 290mm |
| Positioning accuracy | ±0.1mm |
| Total capacity | 2.7kw |
| Dimension | 2800 × 1100 × 1600mm |
| Weight | 1500kg |
