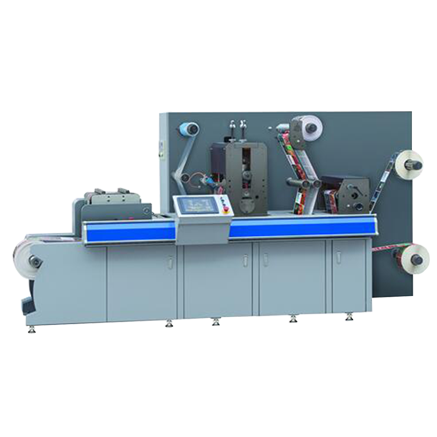

ZM320 Label Die Cutting Machine
MAIN FEATURES:
ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter.
This machine adopts latest Rexrtoh-Bosch (Germany) servo and control system, include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.
The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter according to the production requirement.
When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut.
Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die.
ZM-320 machine has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs, include shrot run to long run.
If the job is large quantity, then you can change the magnetic roller acccordingly, it will highly increase the die-cutting quality and output.
ZM-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it’s an ideal converting machine for the printing house.
MAIN SPECIFICATIONS:
| Max die-cutting speed (rotary) | 120m/min |
| Max die-cutting speed (semi-rotary) | 65m/min |
| Max die cutting length (rotary) | 190.5-539.75mm |
| Max die cutting length (semi-rotary) | 100-350mm |
| Max die cutting width | 300mm |
| Max web width | 320mm |
| Max unwinding diameter | 700mm |
| Max rewinding diameter | 600mm |
| Die cutting accuracy | 0.1mm |
| 20Min slitting width | 20mm |
| Weight | 2400kg |
| Dimension | 3220 x 1680 x 1660mm |
