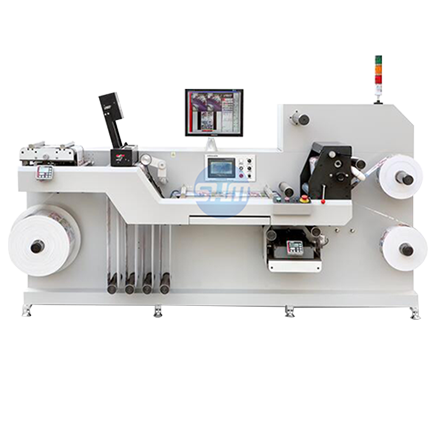

ZB320 Automatic Label Inspecting Machine
MAIN FEATURES:
ZB-320 Auto Label inspecting machine adopts latest BST (Germany) inspecting system.
It can detect defective labels such as missing label, color differences, bad registration and scratched labels.
This machine equips with inline slitting unit, has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.
MAIN SPECIFICATIONS:
| Max inspecting speed | 160m/min |
| Max web width | 320mm |
| Max unwinding diameter | 650mm |
| Max rewinding diameter | 650mm |
| Slitting width | 20-300mm |
| Power | 5kw |
| Weight | 1450kg |
| Dimension | 2850 x 1000 x 1500mm |
-
OPERATING TABLE
-
SLITTING UNIT
-
BST (GERMANY) INSPECTING SYSTEM
-
BST WED-GUIDER
