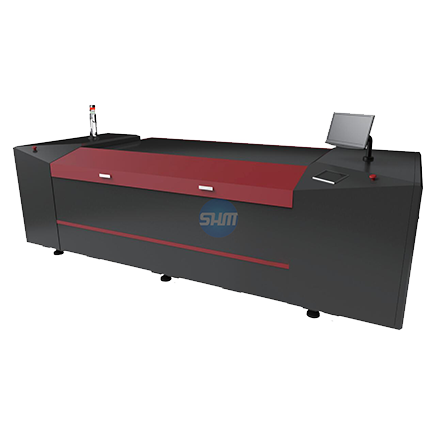

DX5080F Flexo CTP
MAIN FEATURES:
Automatic Dedusting: Activated carbon, Filter, Pressure real-time monitoring
Linear Motor Scanning System: High precision, high speed, and maintenance free, to ensure the stable working of the laser system.
Marble Plartform: High precision，low temprature factor, extremely precision at long term lifecycle.
7 Inch Touch-screen Monitor: More simple and practical for operation.
Bidirectional Pedals: Free operator's hands to make the loading and unloading process easier.
Gigabit Ethernet: Interface More stable and reliable of data transmission, and further of the transmission distance.The distance of the equipment and the edition computer can be more than 100 meters away.
MAIN SPECIFICATIONS:
| Model | DX5080F-I | DX5080F-II | DX5080F-III |
| Productivity | 1.3/2.5㎡/h | 2.6/5.0㎡/h | 4.0/8.0㎡/h |
| Max plate size | 2032x1270mm(80x50inches) | ||
| Plate thickness | 0.95-4.7mm | ||
| Output media | Digital flexographic water-washable letterpress plates; Digital flexographic water-washable plates; Digital flexographic solvent-washable plates | ||
| Application | Label printing, Trade mark, Packaging | ||
| Resolution | 4800DPI/2400DPI(Switch)、4000DPI | ||
| Loading method | Manual loading | ||
| Interface | Gigabit Ethernet | ||
| Environment | Best environment temperature 18-30℃, Humidity 40-70% non condensing | ||
| Power supply | 7kw AC220V 50/60HZ Peak(Single phase) | ||
| Weight | 2700kg | ||

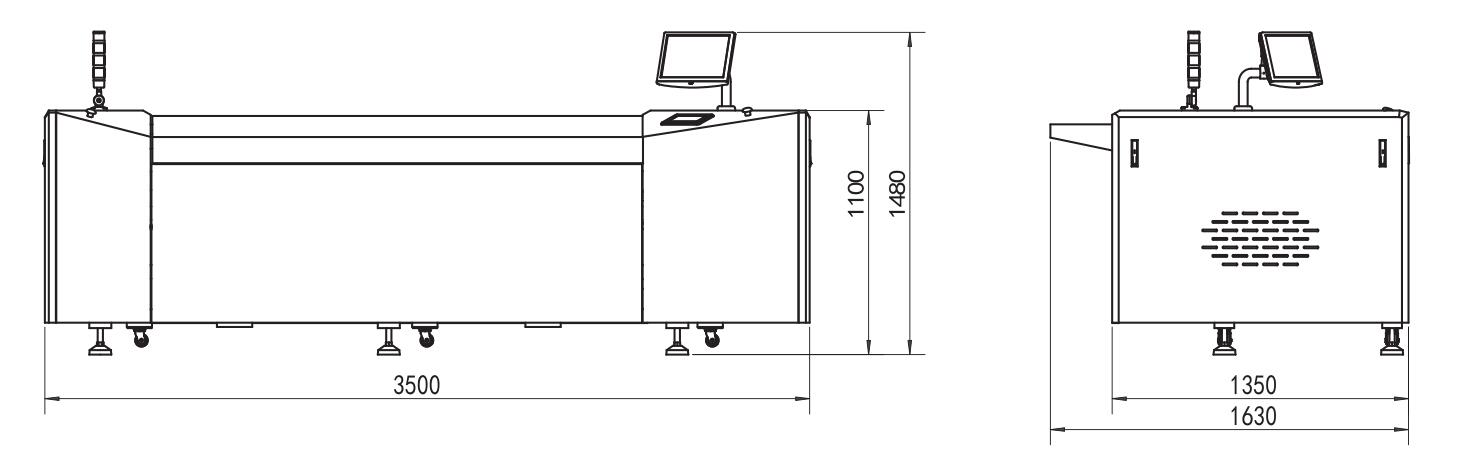

| Dimension | 3500x1630x1100mm | ||
