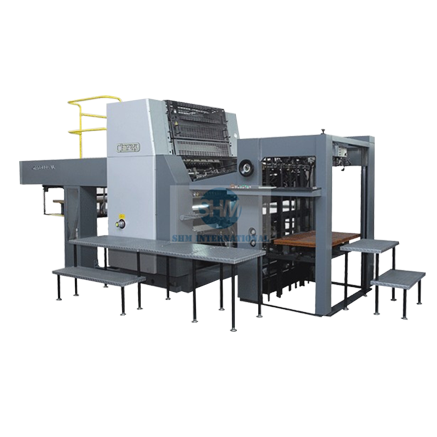

ZMB 94-AL Sheet-fed Offset Perfector
MAIN FEATURES:
Double Size Blanket (Impression) Cylinder
Double-row TRB (Tapered Roller Bearing) Equipped for All Cylinders
Separate Adjustable Plate Clamp for Quick Register Correction
Centralized Control through Touch Screen
Patented In-feed Swing Arm for Stable Performance and Accurate Register
Non-stop Fine Adjustment for Front Lay
Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Control Possible for Flexible Operation
Gripping Force Adjustable For All Transfer Grippers
Stainless Steel Sprayed Plate Cylinder
Centralized Automatic Lubricating System
MAIN SPECIFICATIONS:
| Max sheet size | 650 × 940mm |
| Min sheet size | 393 × 546mm |
| Max printing area | 640 × 920mm |
| Plate size | 720 × 960 × 0.3mm |
| Max printing speed | 10000sph |
| Sheet thickness | 0.04-0.20mm |
| Feeder stacking capacity | 1200mm |
| Delivery stacking capacity | 1000mm |
| Machine power | 25kw |
| Weight | 14000kg |
| Dimension | 5354 × 3440 × 2645mm |
