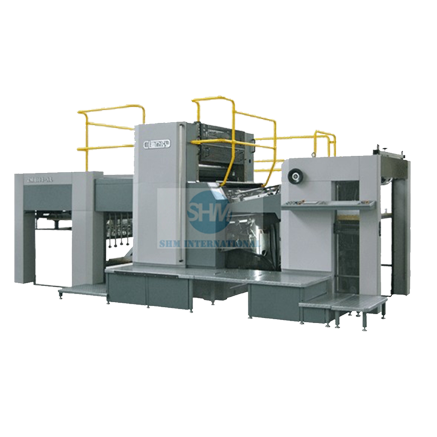

ZMB104-AL Sheet-fed Offset Perfector
MAIN FEATURES:
Double-row TRB (Tapered Roller Bearing) Equipped for All Cylinders
Underside Feeding Swing Arm with Conjugate Cam; Underside Front Lay
Separate Adjustable Plate Clamp for Quick Register Correction
Accurate Electric Plate Locating Device
5-roller Alcohol Dampening System; Patented Intermediate Roller of Stable Performance
Straight-line Rail Guided Feeder Head With 4 Pick up and 4 Forwarding Suckers
Centralized Control through Touch Screen
Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Control Possible For Flexible Operation
Gripping Force Adjustable For All Transfer Grippers
Stainless Steel Sprayed Plate Cylinder
Centralized Automatic Lubricating System
MAIN SPECIFICATIONS:
| Max sheet size | 720 × 1040mm |
| Min sheet size | 360 × 520mm |
| Max printing area | 710 × 1030mm |
| Plate size | 800 × 1040 × 0.3mm |
| Max printing speed | 10000sph |
| Sheet thickness | 0.04-0.20mm |
| Feeder stacking capacity | 1200mm |
| Delivery stacking capacity | 900mm |
| Machine power | 25kw |
| Weight | 16000kg |
| Dimension | 5720 × 3380 × 2750mm |
