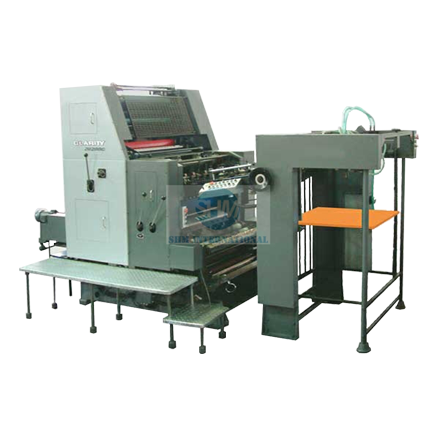

ZM200C Sheet-fed Offset Perfector
MAIN FEATURES:
Frequency Conversion Stepless Speed Regulation
Portable Lower Unit of High Resetting Precision
Patented In-feed Swing Arm for Stable Performance and Accurate Register
Special Plate Clamp System for Easy Operation
Centralized Automatic Lubricating System
MAIN SPECIFICATIONS:
| Max sheet size | 640 × 900mm |
| Min sheet size | 390 × 540mm |
| Max printing area | 625 × 885mm |
| Plate size | 760 × 920 × 0.3mm |
| Max printing speed | 5000sph |
| Sheet thickness | 0.05-0.15mm |
| Feeder stacking capacity | 1000mm |
| Delivery stacking capacity | 440mm |
| Machine power | 10kw |
| Weight | 6000kg |
| Dimension | 3700 × 2700 × 2200mm |
