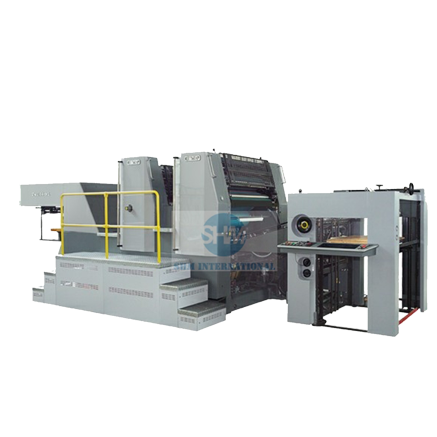

ZM2104-AL Sheet-fed Offset Press
MAIN FEATURES:
Patented In-feed Cylinder with High-Low-Level Adjustable Gripper Pads
5-roller Alcohol Dampening System; Patented Intermediate Roller of Stable Performance
Double-row TRB (Tapered Roller Bearing) for High Rotate Precision and Pressure Equalization
Separate Adjustable Plate Clamp for Quick Register Correction
Central Cylinder Type Arrangement
Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Possible For Flexible
MAIN SPECIFICATIONS:
| Max sheet size | 720 × 1040mm |
| Min sheet size | 360 × 520mm |
| Max printing area | 710 × 1030mm |
| Plate size | 800 × 1040 × 0.3mm |
| Max printing speed | 10000sph |
| Sheet thickness | 0.06-0.6mm |
| Feeder stacking capacity | 1000mm |
| Delivery stacking capacity | 1200mm |
| Machine power | 37kw |
| Weight | 15000kg |
| Dimension | 6630 × 3340 × 2550mm |
-
OPTIONAL DEVICES:
1. Centralized Control through Touch Screen
2. Stainless Steel Plated Impression and Plate Cylinder
3. Centralized Automatic Lubricating System
