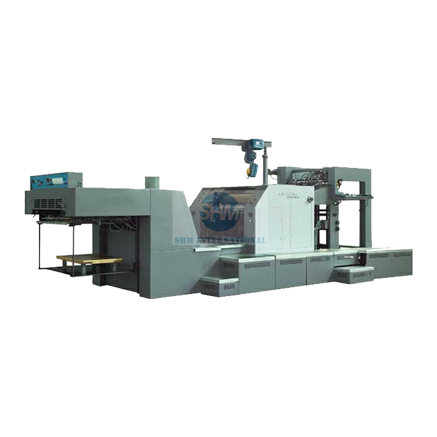

ZMA94 Sheet-fed Gravure Machine
MAIN FEATURES:
Patented Underside Feeding Swing Arm; Underside Front Lay
Heidelberg-type Feeder of 1500mm Stacking Capacity; Non-stop Feeder and Delivery
Patented Plate Cylinder Loading Mechanism
Double Size Delivery Cylinder with Patented Anti-smearing Device
Air Clutch for Cylinders and Scraping Blade
Electric Ink Pump Driven by Explosion-proof Motor
Double Size Impression Cylinder
Centralized Automatic Lubricating System
Hot Wind and IR Drying for High Printing Speed; UV Curing System Optional
MAIN SPECIFICATIONS:
| Max sheet size | 650 × 940mm |
| Min sheet size | 393 × 546mm |
| Max printing area | 630 × 940mm |
| Max printing speed | 10000sph |
| Sheet thickness | 0.07-0.45mm |
| Feeder stacking capacity | 1500mm |
| Delivery stacking capacity | 1000mm |
| Machine power | 43kw |
| Weight | 9100kg |
| Dimension | 7200 × 3600 × 2700mm |
