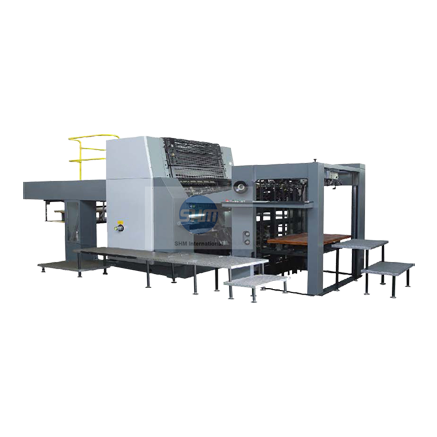

ZMB94B Offset Perfector
MAIN FEATURES:
Double diameter impression cylinder is used for improving printing quality.
Micro adjusting of the lower plate cylinder is in axial and radial directions can be performed without stopping the pres.
Our own patented sheet transfer mechanism of eccentric and swing four connection rods ZL96204910.7 is used for stable running.
The action of cylinders throw-on and off, lifting of water rollers and ink rollers are performed by pneumatic system with easy adjustment and operation.
There are powder sprayer, blanket cylinder dry unit and plate cylinder positioning unit for options.
MAIN SPECIFICATIONS:
| Max sheet size | 650 x 940mm |
| Min sheet size | 393 x 546mm |
| Max printing size | 640 x 920mm |
| Max speed | 10000 s/h |
| Thickness of paper | 0.04-0.3mm |
| Feeder pile height | 1200mm |
| Delivery pile height | 1000mm |
| Power | 25kw |
| Weight | 14000kg |
| Dimension | 5354 x 3440 x 2645mm |
