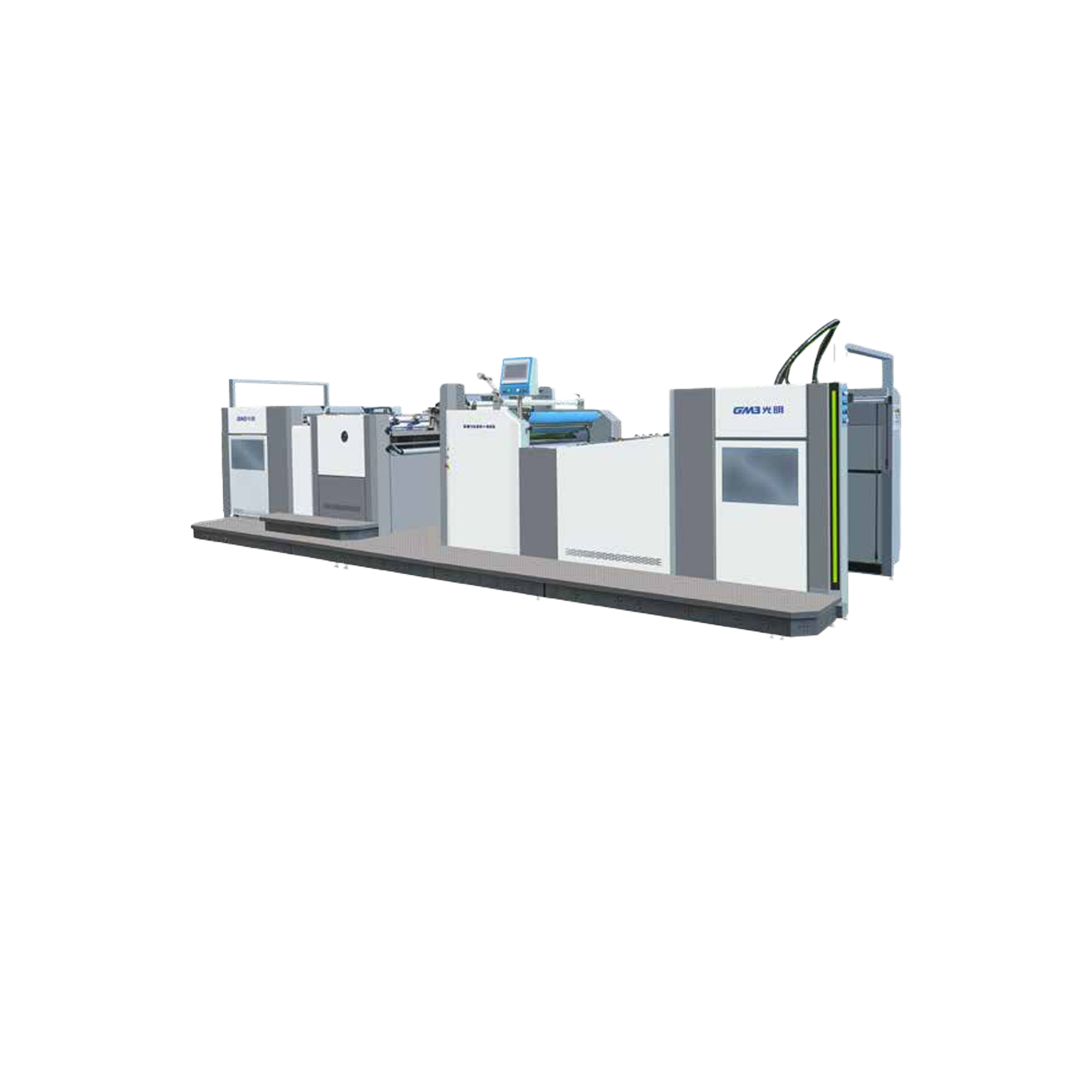

SW-1080 x 900 Fully automatic thermal film laminator
VIDEO
MAIN FEATURES:
The machine, capable of automatic feeding, sheeting, non-stop stacking, and sheet counting, can be operated individually to save labour costs.
Pneumatic sheeter + Rotary Knife, speed up to 100m/min
Electric film lifting system for easier film change
Electromagnetic heating system: Fast temperature rise, accurate temperature with a tolerance of +-1℃
Servo controlled feed head
MAIN SPECIFICATIONS:
| Max sheet size | 1080 x 900mm |
| Min sheet size | 260 x 300mm |
| Lamination speed | 0 - 100m/min |
| Sheet thickness | 100 - 500g/m2 |
| Gross power | 60kW |
| Weight | 5752kg |
| Dimensions | 8900 x 2450 x 1910mm |
| Pre-stacker | 1660mm |
