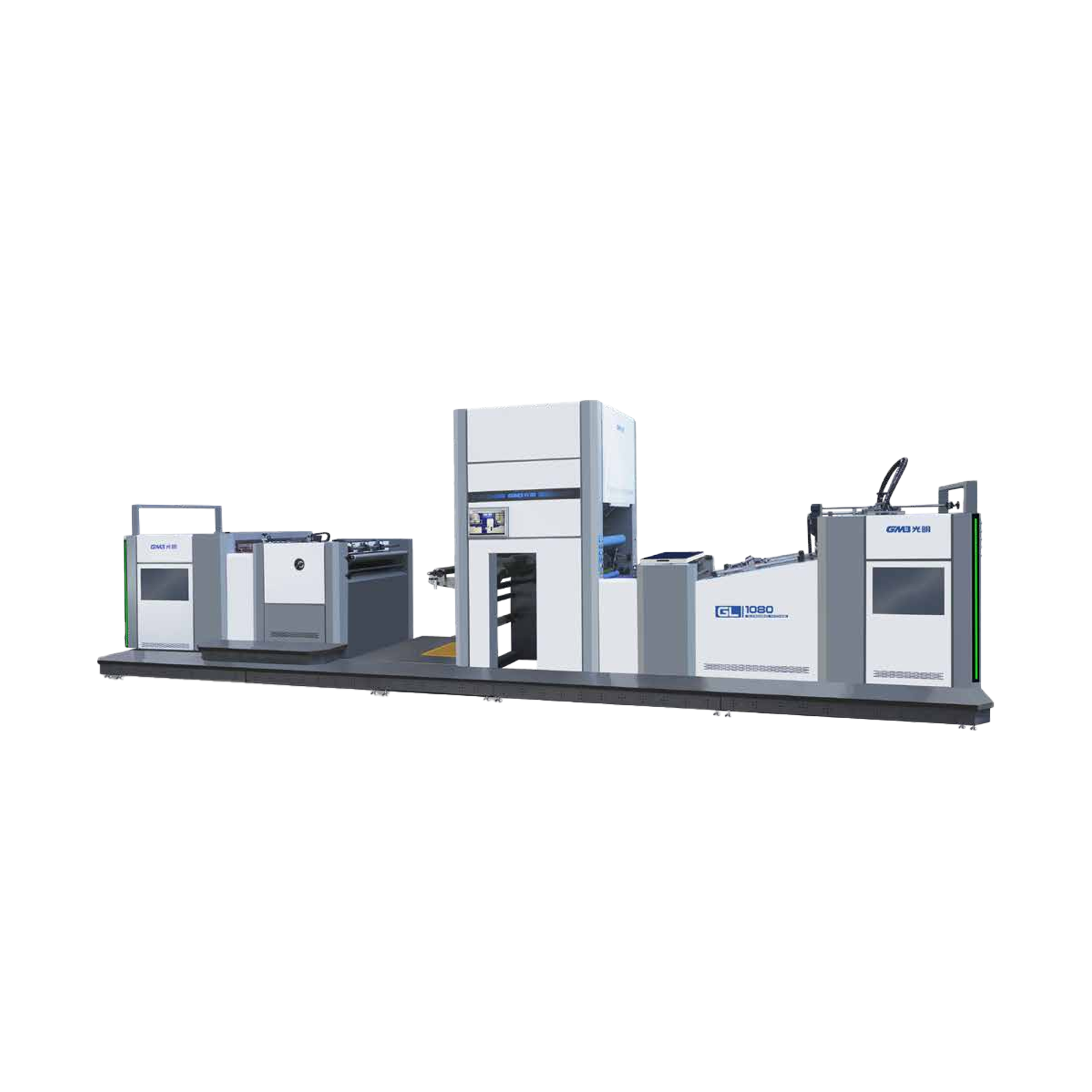

GL-1080 x 900 Fully automatic water base & Thermal film laminator
MAIN FEATURES:
Glueing assemble with teflon treatment, easier to be cleand
Automatic feeding sheeting & non-stop stacking: Individual operation to save labour costs.
Pneumatic sheeter + Rotary Knife, speed up to 100m/min
Hot wind drying system for fast adhesive drying
Electromagnetic heater: fast temperature rise, accurate control with a tolerance of +-1℃
Large diameter rollers + drying roller
Electric shaftless feed head + electric left pile guide
Separate door design: safer operation, easier maintenance and simpler use
Suitable for both water based and thermal film lamination
MAIN SPECIFICATIONS:
| Max sheet size | 1080 x 900mm |
| Min sheet size | 300 x 260mm |
| Lamination speed | 0 - 100m/min |
| Sheet thickness | 100 - 500g/m2 |
| Gross power | 60kw |
| Weight | 8000kg |
| Dimensions | 8600 x 2550 x 3150mm |
| Pre-stacker | 1700mm |
