MF-SKJ560 Hard cover book casing in machine
INTRODUCTION
To those medium and small factories, hardcover book casing is time-consum-ing. In order to shorten time, labor and enhance poor efficiency in process ofmaking hardcover books,we develop a semi auto casing machine based onpart of the working principle of importing full-automatic casing machine. Itnot only removes the shortage of unbalance gluing, but also improves thegluing speed (once two sides).It is quick and precise in locating the hard casesand aligning the book block with cases.
Details
Details
MAIN SPECIFICATIONS:
| Power supply | 380/220v, 50Hz |
| Mainframe power | 1.5kW |
| Work speed | 7-10PCS/minute |
| The book block thickness | 4-80mm |
| Hard case chipboard size max | 560 x 450mm |
| Hard case chipboard size min | 90 x 60mm |

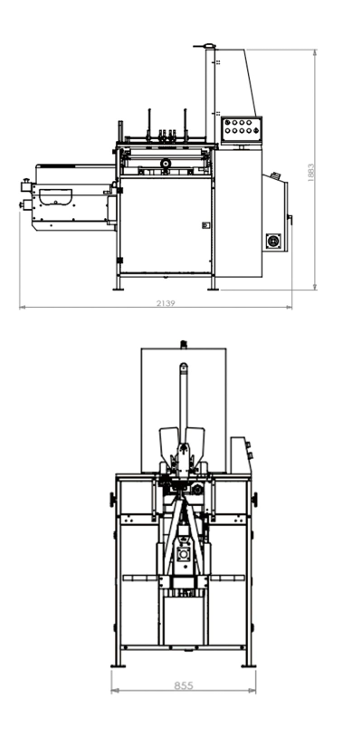

| Machine Dimensions | 2200 x 900 x 1900mm |
| Machine weight | 580kg |
