MF-SKJ380AS/SKJ560 Hard cover book casing in machine
INTRODUCTION
This version is specially designed for round back book Casing in. It solves theproblem of difficulty and time-consuming in round back book finishing pro-cess. It not only removes the shortage of unbalance gluing, but also improvesthe gluing speed (once two sides).It is quick and precise in locating the hardcases and aligning the book block with cases.

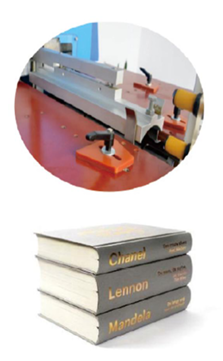

Details
Samples

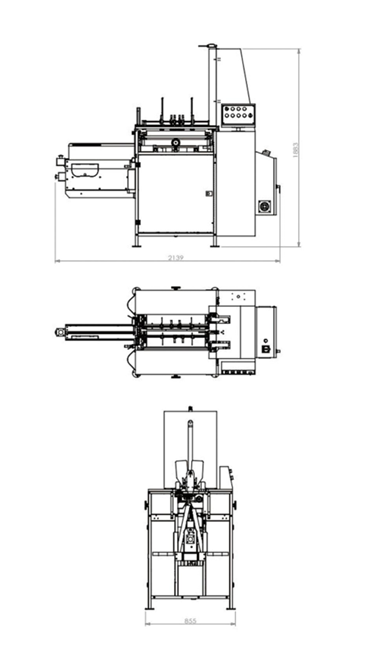

Blue print
MAIN SPECIFICATIONS:
| Model | MF-SKJ380AS | MF-SKJ560 |
| Power supply | 380/220V, 3PH, 50Hz | 380/220V, 3PH, 50Hz |
| Mainframe power | 1.5kW | 1.5kW |
| Work speed | 0-17PCS/minute | 7-10PCS/minute |
| The book block thickness | 4-60mm | 4-80mm |
| Block size max | 360 x 300mm | 560 x 450mm |
| Block size min | 90 x 60mm | 90 x 60mm |
| Machine dimensions | 1820 x 930 x 2100mm | 2200 x 900 x 1900mm |
| Machine weight | 540kg | 580kg |
