Products Book Making System HARD COVER BOOK MACHINE

MF-ATT100S Automatic three knife trimmer machine

Technical features

Adopts Janpanese keyance PLC control system,frequency conversion speedregulation,human-computer interactiveoperation inferface,scalable dock-inglSM system.

The fuselage is integrated and completely cast,the structure is strong insteel,and the German pentahedronmachining centerisprocessed and molded at one time to ensure high prcision.

It adopts a double-strengthened brake mechanism,which can safety brakeat high speed and power failure to ensure safety.

The automatic height adjustment function of the book makes the conversioneasier and faster.

Quick tooling design,you can easily change the blade without tools.

Configure 8 overall movable knife boards to ensure full-size coverage.

Adopts double-side edge silicone lubrication device,the cutting surface issmooth and smooth-automatic oil supplylubrication.

Fully enclosed protection,safe and low-noise optional devices:anti-breakdevices can be purchased and installed as needed


Details

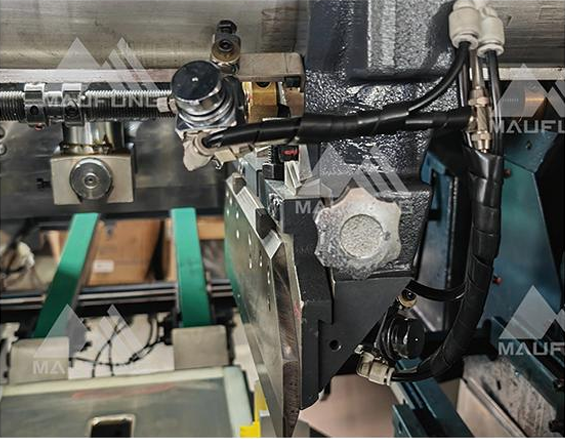

Cut out the mouth of the book

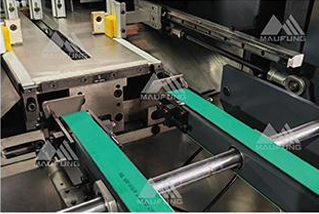

Entrance collection device

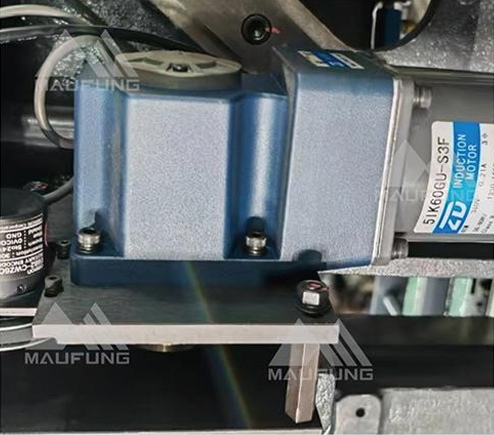

Adjust the thickness of books
The front ruler is over adjusted
MAIN SPECIFICATIONS:
Max untrimmed size 385 x 310mm
Min untrimmed size 115 x 95mm
Max cutting height 100mm
Max finished size 380 x 300mm
Min finished size 140 x 90mm
Min single cutting height 3mm
Cutting speed 15-50Times/m
Power 6.1kW
Overall dimension 3600 x 2430 x 1750mm
Machine weight N.W3800
