LC-S Automatic High Speed 4 and 6 corner Folder Gluer
INTRODUCTION
LC-S Automatic high speed folder gluer models are equipped with advanced state-of-the-art technologies for fast job changeover, especially focused on multi-type work capabilities with medium-long to shorter run lengths in mind.
The new universal multi-function section with integrated bump & turn allows cartons to be turned 90º and aligned. Pre-breakers are provided by outer belts on both sides.
New drive technologies and an extra-length crash lock bottom section are included. An extra folding & closing section with a collapsible central carrier is able to produce complex carton structures, straight line, lock bottom, 4 & 6 corner cartons and more.
The LC-S series machine has emerged with high automation and full functionality, which helps box manufacturers make the best use of paper material and improve the efficiency of box production.
We persist in innovation and high performance. This helps us provide the most competitive gluing and folding equipment for all customers!
VIDEO
Products
6 Corners Box

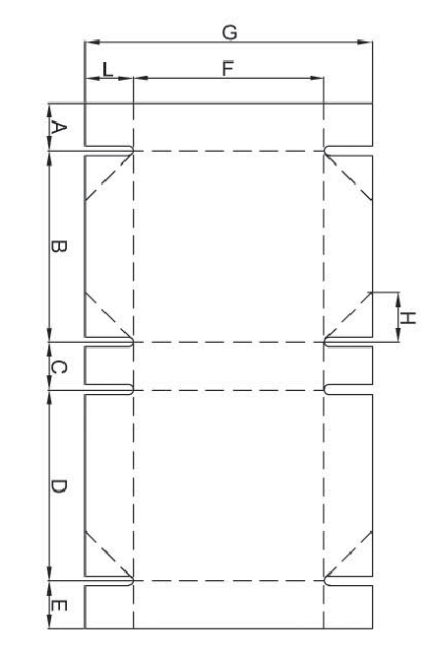

4 Corners Box

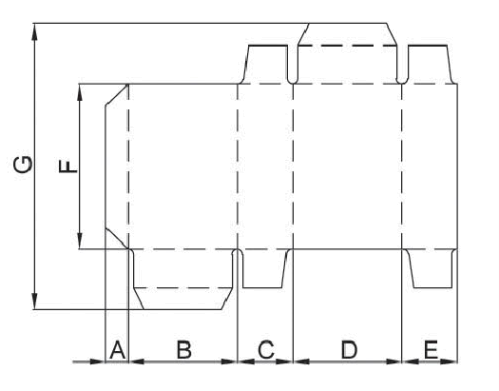

Crash Lock Bottom Box

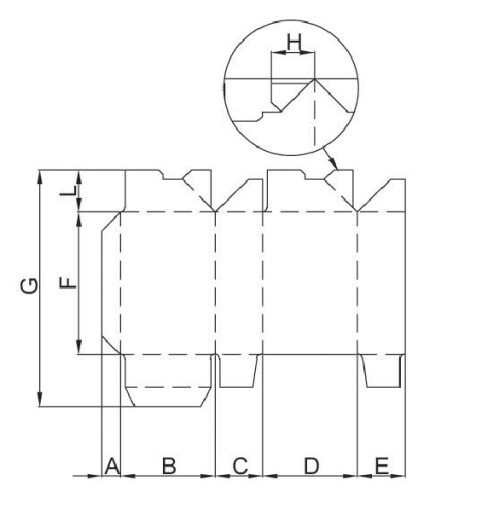

Straight Line Box
MAIN SPECIFICATIONS
| Model | 650 | 800 | 1100 |
| Paper material | Cardboard 210-800gsm, E flut | ||
| Max speed | 400 m/min | ||
| Max thickness of folded box | 12 mm | 12 mm | 12 mm |
| Way of floding | Fold 1 and fold 3 are 180° and 135°, fold 2 and 4 are 180° | ||
| Power supply | 3P 380V 50Hz | ||
| Blank width | 650 mm | 800 mm | 1100 mm |
| Length x Width x Height | 15.3 x 2.23 x 1.67 m | 15.7 x 2.43 x 1.67 m | 15.7 x 2.73 x 1.67 m |
| Net weight | 5.5 T | 6.5 T | 7.5 T |
| Total power | 23 kW | 30 kW | 30 kW |
-
Paper feeding section
1. The feed part is driven by variable frequency motor and synchronizes with the main engine
2. Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample。
3. Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.
4. Operators can operate feeder switch in any regional.
5. Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.
6. Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply. Feeder section can stack 400MM height paper board.
-
Aligner section
1. The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
2. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
-
Pre-folding section
Special first folding line pre-fold 180°. third line 165°, which perfectly meeting the requirements of automatic packaging industry.
-
Crash lock bottom section
Compete set of crash lock bottom device makes the lock bottom Part perfectly .Sectional-type upper Belt board with special design.
-
Folding and closing
1. Collapsible central carrier by pneumatic system, saving time for set-up and allows to run small boxes.
2. Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
-
Box Squaring
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.
-
Spraying System
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.
-
Transmission
1. Equipped with special additional sponge belt for the press of boxes valley part.
2. Upper section moves back and forward, allowing for different box length.
-
Trombone section
1. Up and down belt can be adjusted separately.
2. Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
-
Lower gluing tank
1.Lower gluing tank is 2L.
2.Easy to remove and clean.
3.Electronic upper gluing system by guns.
