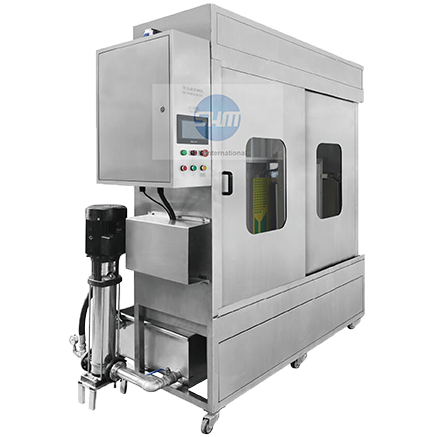

TC1300TX Automatic Decoating & Developing Machine
MAIN FEATURES:
1. The machine has two kinds of mode “developed and decoating” and according to the need to adjust the cleaning pressure, can easily solve all kinds of cleaning work of screen plate.
2. It is used for screen plate degreasing, developing, decoating and cleaning of water-based ink.
MAIN SPECIFICATIONS:
| Max screen plate size | 1170x1300mm |
| Working time | About 3min/pc |
| Power | 3P five wires AC 380V/50Hz 8kw |
| Air pressure | 0.55-0.7Mpa |
| Air consumption | Ø16mm 500-800L/min |
| Dimension | 2140x1540x2450mm |
