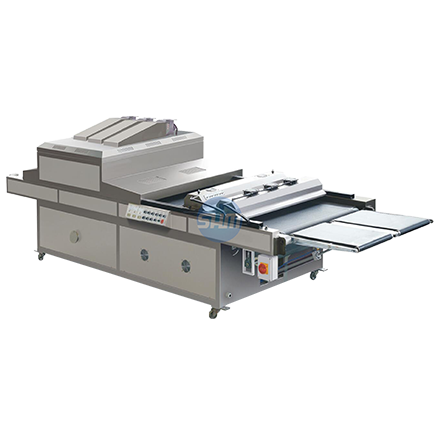

JB-800UVJW/1050UVJW/1300UVJW UV Curing Machine
INTRODUCTION:
JB-1050UVJW is specially designed for using with automatic screen press. It's widely used for drying, dehurnidifying and UV curing etc in the field of screen printing, dyeing, electroplating, electronic circuit board and so on.
MAIN FEATURES:
1. Wide energy range output: the output power of the lamp is from 30% to 100% stepless adjustable.
2. High efficiency and energy saving and environmental protection: over 20% of UV energy is higher than the transformer driver; no transformer self loss and reactive power, energy saving 30% over the same period.
3. Low power standby energy saving: 30% power standby when without material input; once material come it can catch the set power in 0.5 secends.
4. Comprehensive intelligent protection: protection and alarm when lamp tube overheating, overvoltage, over current, light pipe line break, short circuit.
MAIN SPECIFICATIONS:
| Model | JB-800UVJW | JB-1050UVJW | JB-1300UVJW |
| Used with | JB-720A/800A/780/78C | JB-92C/1050A/1020A/1020/ 106AS/106C/1050AG | JB-1300 |
| Effective solidify width | 850mm | 1100mm | 1350mm |
| Convey speed | 65m/min | 65m/min | 65m/min |
| UV lamp power | 10.0kw x 3pcs | 10.0kw x 3pcs | 10.0kw x 3pcs |
| IR lamp power | 1.5kw x 3pcs | 1.5kw x 3pcs | 1.0kw x 6pcs |
| Wrinkle lamp power | 40w x 5pcs | 40w x 5pcs | 60w x 5pcs |
| UV exhaust | 0.37kw x 3 | 0.37kw x 3 | 0.37kw x 3 |
| Power | 38. 5kw | 38. 5kw | 40kw |
| Weight | 1100kg | 1200kg | 1400kg |
| Dimension | 4860x1700x1710mm | 4860x2000x1710mm 4860x2000x1990mm | 4860x2250x1710mm |
