Products SCREEN PRINTING SYSTEM DRYING MACHINE

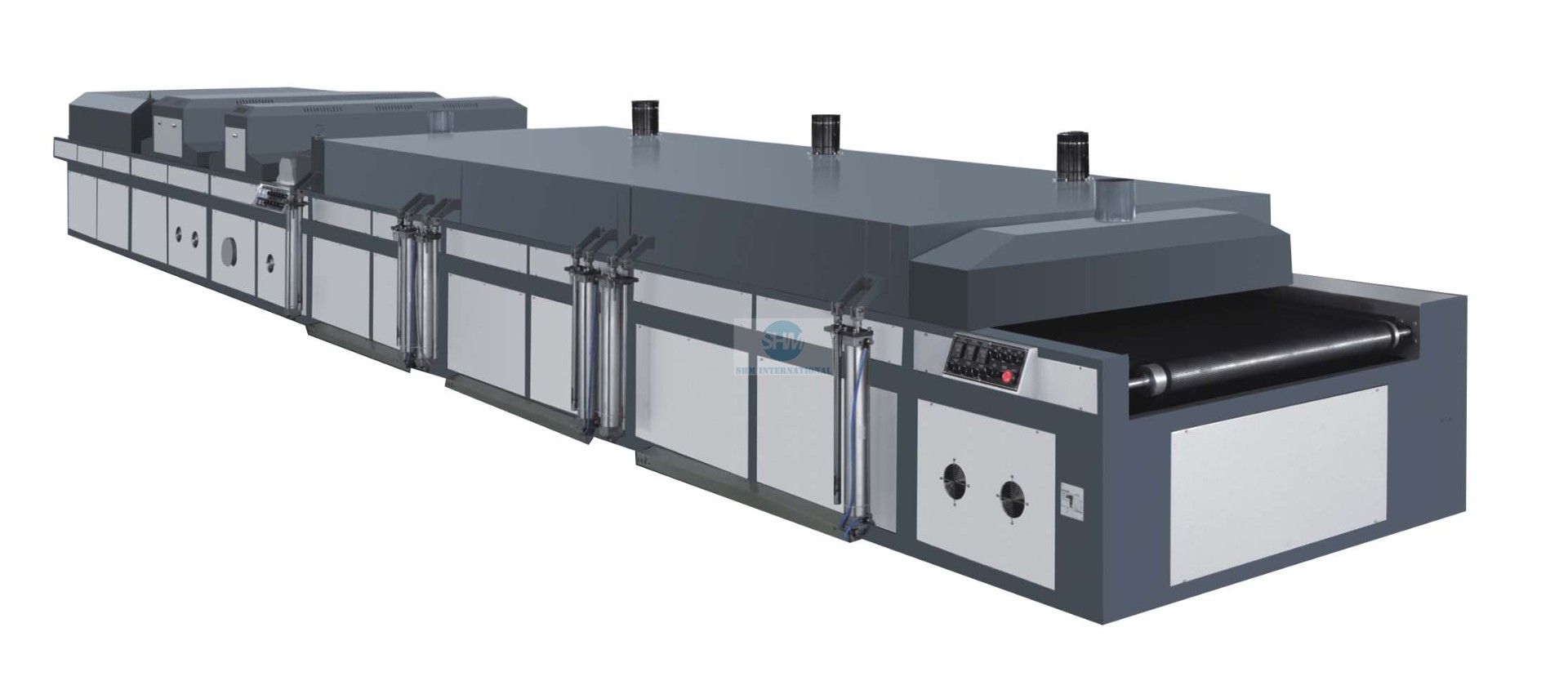

JB-P Series Air-Jet & UV Conveyer Belt Dryer

MAIN FEATURES:

1. Multi-section free combination design, according to different printing, the user can choose different ink.

2. Three hot air units, one UV unit and one cooling unit.

3. Cycle pipe line makes sure the hot air high active and steady.

4. Cooling unit keep blowing the cold air blast through the high pressure blower, cooling the printing quickly.

5. Frequency control, Teflon convey belt, thermo-stability, rub resistance, radiation hardened insure the machine working life.

6. Automatic tensioning and correcting unit insure the delivery stable and operation easy.

MAIN FEATURES:

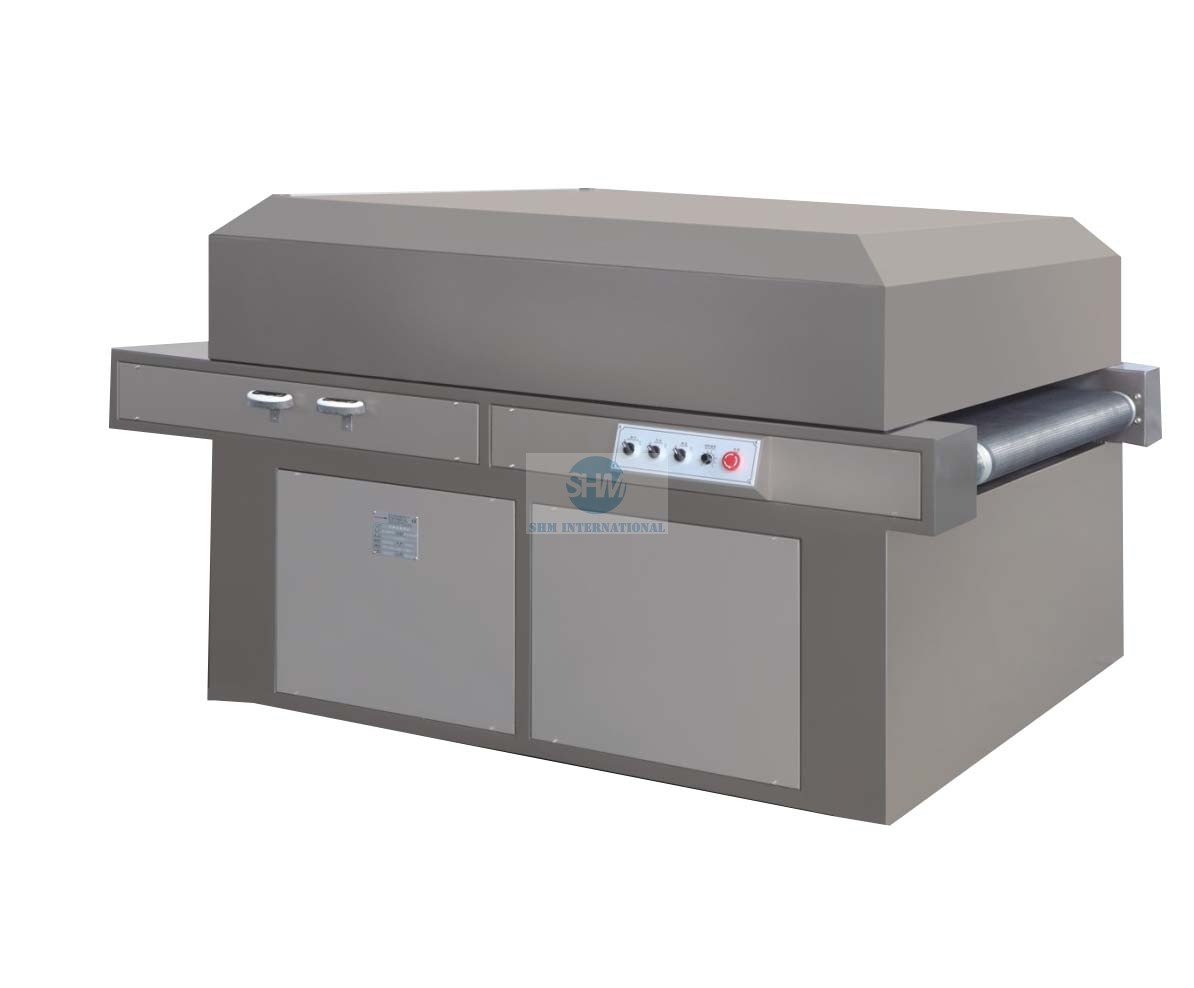

1. Equiped with flat conveyor dryer or UV machine which is used to cool the pritnig after dryer.

2. Can offer three cooling method, water cooling, air condition and wind cooling.

3. Need connect power independently, with frequency conversion conveyor belt.

4. Keep blowing the cold air blast through the high pressure blower, cooling the paper fleetly, so that the thin paper can be deliveryed smoothly.

MAIN SPECIFICATIONS:

Model	JB-800P	JB-1100P
Speed	60m/min	60m/min
Conveyor motor power	0.75kw	0.75kw
Effective solidify width	800mm	1100mm
Max temperature (Hot air unit)	150℃	150℃
IR lamp power (Hot air unit)	2kw x 9 pcs x 3 units	2kw x 9 pcs x 3 units
Cycle fan power (Hot air unit)	1.1kw x 2 pcs x 3 units	1.1kw x 2 pcs x 3 units
UV lamp power (UV unit)	8.8kw x 2 pcs x 3 units	8.8kw x 2 pcs x 3 units
Radiating fan power (UV unit)	0.75kw x 2	0.75kw x 2
Absorption fan power (UV unit)	0.75kw	0.75kw
Air condition power (Cooling unit)	0.75kw x 2	0.75kw x 2
Air blower power	0.85kw	0.85kw
Absorption fan power of feeder	0.55kw	0.55kw
Weight	2300kg	2600kg
Dimension	11100x1730x1650mm	11100x1950x1650mm
