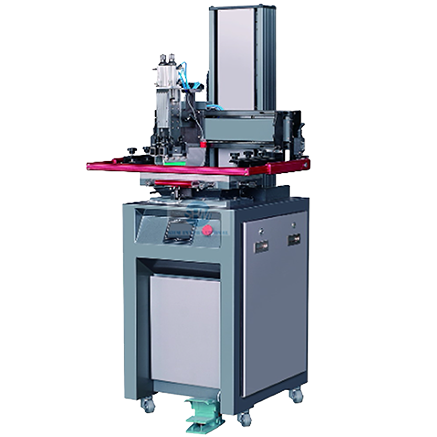

JB-25CA/45CA Vertical Type Screen Printer
MAIN FEATURES:
It is mainly for printing on small size film, sheet, board, such as FPC, IMD, MEMBRANE, Mobile glass, PC glass, Solar silicon chip, biological test piece, OPTO-Electronics, Electric elements etc.
MAIN SPECIFICATIONS:
| Model | JB-25CA | JB-45CA |
| Max printing size | 200x250mm | 300x450mm |
| Max frame size | 380x530mm | 500x750mm |
| Min frame size | 240x350mm | 250x550mm |
| Working table size | 250x400mm | 400x600mm |
| Capacity | 800P/H | 800P/H |
| Printing speed | 100-500mm/sec | 100-500mm/sec |
| Frame height | 20-30mm | 20-30mm |
| Max substrate thickness | 50mm | 50mm |
| Frame rising height | 300mm | 300mm |
| Frame adjust scope | ±10mm | ±10mm |
| Power | 0.83kw | 0.83kw |
| Air source | 5-7kgs/cm² 0.52L/cycle | 5-7kgs/cm² 0.52L/cycle |
| Weight | 190kg | 250kg |
| Dimension | 690x630x1600mm | 940x710x1620mm |
