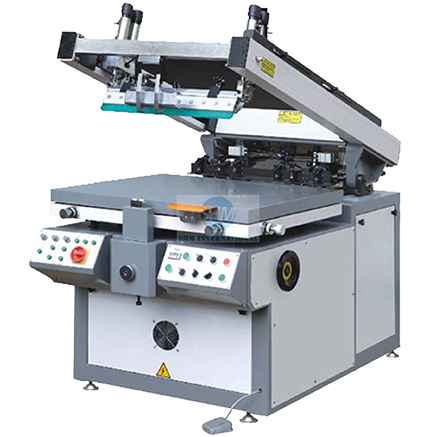

JB-8060A High Precision Screen Printing Machine
MAIN FEATURES:
1. Printing course is controlled by servomotor.(Suitable for printing high glutinosity ink)
2. It is easy to acquire the high precision printing products due to synchronized operation of the instant off-network structure and scraper.
MAIN SPECIFICATIONS:
| Max printing size | 800x600mm |
| Max frame size (outside) | 1100x950mm |
| Min frame size (outside) | 600x550mm |
| Max printing speed | 1200pcs/h |
| Height of instant off-network | 0-25mm |
| Use level of the scraper | 12L/min |
| Skewness of the scraper | 0-60° |
| Air pressure | 0.4-0.6mpa |
| Max printing thickness | 35mm |
| Power | 3P 50Hz 380V 2.2kw |
| Workbench size | 900x800mm |
| Weight | 600kg |
| Dimension | 1600x1150x1450mm |
