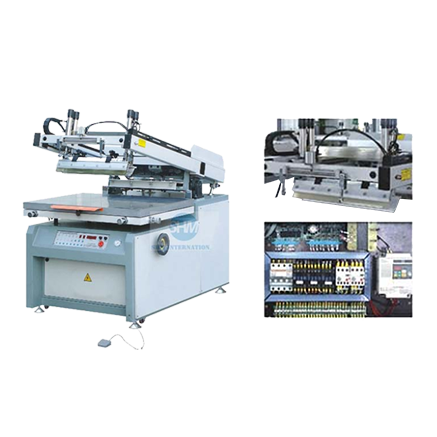

JB-G Series Microcomputer Screen Printing Machine
MAIN FEATURES:
1. The printing effect is very excellent by using four air cylinders.
2. The height of screen-release device can be quickly adjusted, ensure printing precision and quality.
3. The tension pressure for printing blade, ink-return blade is adjusted separately at infinite speed, which increases the service lift and printing quality of half tone.
4. Printing stroke and half tone fixed system can be quickly adjusted to meet different printing area.
MAIN SPECIFICATIONS:
| Model | JB-6090G | JB-8012G |
| Max printing size | 600x900mm | 800x1200mm |
| Max frame size | 950x1100mm | 1250x1500mm |
| Workbench size | 800x1000mm | 1000x1300mm |
| Printing speed | 1200pcs/h | 1000pcs/h |
| Max printing thickness | 25mm | 25mm |
| Height of instant off-network | 0-15mm | 0-20mm |
| Printing motor power | 0.75kw | 1.1kw |
| Lifting motor power | 0.75kw | 1.1kw |
| Wind motor power | 1.1kw | 1.5kw |
| Machine power | 2.6kw | 3.7kw |
| Weight | 600kg | 900kg |
| Dimension | 1600x1200x1300mm | 1900x1400x1400mm |
