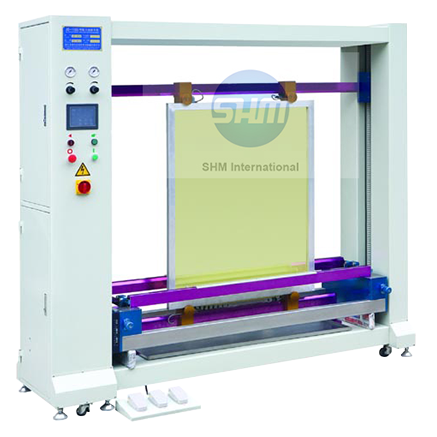

JB-1100T Screen Coating Machine
INTRODUCTION:
It's specialized in coating the emulsion for large size screen frame. The machine is full automatic and can make high precision screen without skillful technician. The application range is widely.
MAIN FEATURES:
1. The machine is controlled by PLC, through the touch screen,data of all function can be setted in advance, shows with numerical value, it's easy for operation. Can make the high precision screen without skillful technician.
2. Foot switch control the pressure clamp to load and unload the frame which is easy for holding the frame by hands.
3.The coating thickness can be controlled by setted the coating pressure and coating times (4 ~ 35μ).
4.It can coating front and back side separately or two sides at the same time, and the coating times for front and back sides can be adjusted independence.
5. The up and down speed of coating speed in two sides all can be adjusted stepless change.
6. Before finishing to coating, it can turn the angle of the scrape tank and leave the frame about 15mm, and no need to coating the edge of the screen.
7. Adopt the best scrape tank which ensure the emulsion can be coated in screen equally.
8. The bottom tank is stainless steel which avoid the emulsion dropping,conveniently clean and keep the machine clean.
9. It has the buzzer, when the coating is finished, it rings.
10. All pneumatic elements are from Japanese SMC, which make the machine run stably and low noise.
MAIN SPECIFICATIONS:
| Model | JB-T1100 |
| Max frame size | 1200x1300mm |
| Max coating size | 1100x1150mm |
| Screen frame thickness | 30-50mm |
| Coating speed | 0-99mm/s |
| Coating time in advance | 1-20times |
| Weight | About 400kg |
| Dimension | 2100x620x2050mm |
