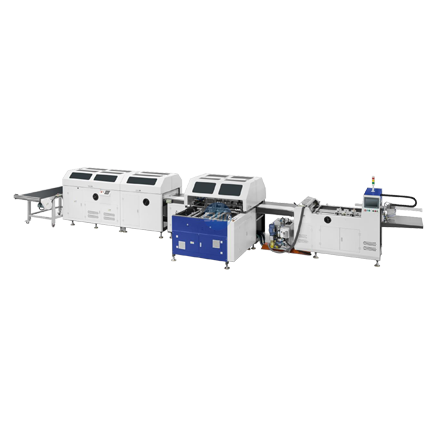

CM600A Automatic Case Maker
| Model | CM600A |
| Paper size | Max.630x1430mm Min.130x230mm |
| Product size | Max.600x1400mm Min.120x220mm |
| Paper thickness | 100-300gsm |
| Cardboard thickness | 1-3mm |
| Center strip size | Min.7mm |
| Folding size | 10-18mm |
| Cardboard qty. | Max.6pcs |
| Precision | ±0.1mm |
| Speed | ≤35pcs/min |
| Air supply | 30L/min 0.6mpa |
| Power | 380V 3phase 12kw |
| Weight | 3900kg |
| Dimension | 9500x2600x1700mm |
The rubber rollers are all made of polished stainless steel chromium-plated rollers, and the wire contact scraper is more durable
