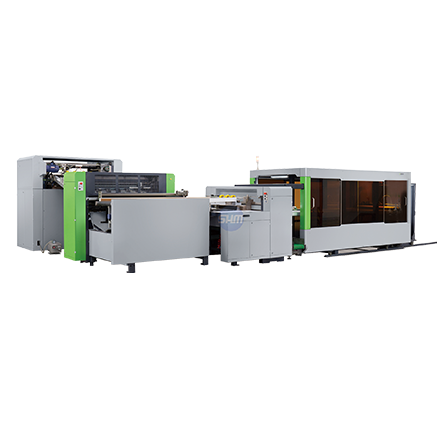

BC21A/21S Automatic Cardboard Cutter
INTRODUCTION:
Automatically complete vertical board cutting and horizontal board cutting,only one person is required to operate,which can reduce 3-5persons,reduce the intermediate handing links,automatically discharge and concentrate transporting the scraps,and automatically complete the finished products stack.
MAIN FEATURES:
1.The whole tray of boards is fed automatically.
2.The long-bar board is automatically conveyed to the horizontal cutting after the first cutting is completed.
3.After the second cutting is completed,the finished products are stacked into the whole tray.
4.The scraps are automatically discharged and concentrated to an outlet to convenient scraps disposal.
5.Simple and user-friendly operation process to reduce production process.
6.Optional digital rualer.
MAIN SPECIFICATIONS:
| Model | BC21A |
| Original board size | First knife: Max.1220x1220mm Min.750x750mm Second knife: Max.450x1220mm Min.150x750mm |
| Finished size | L:150-450mm W:85-600mm |
| Board thickness | 1-4mm |
| Capacity of the board feeder | Max.30sheets/min |
| Capacity of the strip feeder | Max.120m/min |
| Power | 11kw 50Hz 3phase |
| Dimension | 11000x6700x2200mm |
| Model | BC21S |
| Original board size | Max.1220x1220mm |
| Finished size | L:150-450mm W:85-600mm |
| Board thickness | 1-4mm |
| Capacity of the strip feeder | Max.120m/min |
| Power | 11kw 50Hz 3phase |
| Dimension | 7800x2150x1900mm |
-
WORKING PROCESS:
-
BC21S BOARD CUTTER
