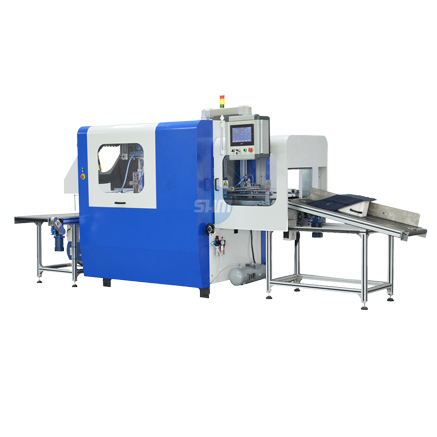

MF-FEM450 Auto Elastic Band Inserting Machine
MAIN FEATURES:
This machine is used for inserting the elastic band to hard cover. lt automatically delivers the cover, cuts the elastic band, inserts and sticks the elastic band into the cover, greatly enhancing theworking efficiency and product quality.
MAIN SPECIFICATIONS:
| Model | MF-FEM450 |
| Cover size | Max.310x450mm Min.140x190mm |
| Elastic band margin | 15-20mm |
| Elastic band size | 6-10mm |
| Case thickness | 1.5-4mm |
| Speed | 1500pcs/hr |
| Power supply | 380V 50Hz |
| Power | 6kw |
| Weight | 1300kg |
| Dimension | 2650x1600x1650mm |
-
Upper feeder
-
Auto punching
-
High temp elastic band cutting
-
Hot melt glue spraying system
