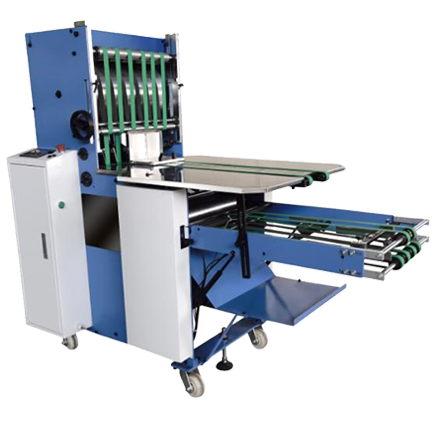

LSZ460A Vertical Paper Receiving Machine
INTRODUCTION:
Designed for collating single sheets of paper after they've been folded, such as booklets, manuals, and letters.
MAIN FEATURES1:
(2) High-speed collating with excellent flattening quality, mechanical stability, and easy operation make it a labor-saving device.
(3) The processed sheets don’t require binding and stack neatly, ready for saddle stitching or perfect binding, thus enhancing the binding quality.
(4) Upon completion of folding, the booklets are automatically and sequentially collated, reducing the workload on the folding staff and decreasing the need for additional labor.
MAIN FEATURES:
(1) The electrical system is entirely independent, with touchscreen and PLC controls for more stable and reliable operation.
(2) The machine is ready for use upon powering up and requires no modifications to connect with other devices. It employs a spring compression mechanism to consolidate the folded sheets, which are then vertically aligned via rotating rollers.
(3) Equipped with multiple drive motors controlling paper feeding, collating, and the paper tray's vertical adjustment. Speed can be adjusted individually, offering convenience for collation adjustment.
(4) Capable of flattening, count marking, and vertical collation of folded sheets.
(5) Compatible with various folding methods and can be connected to different models of folding machines for collating.
(6) At the end of a batch task, a single button ends the operation. The remaining sheets will be collated within your set time and the machine will automatically shut down.
MAIN SPECIFICATIONS:
| Sheet input size | Max.460x310mm Min.135x850mm |
| Speed | 40-180m/min |
| Collating quantity | Max.700mm |
| Collating range | Max.150/min |
| Interface adjustment | 380-930mm |
| Power | 0.95kw |
| Weight | 550kg |

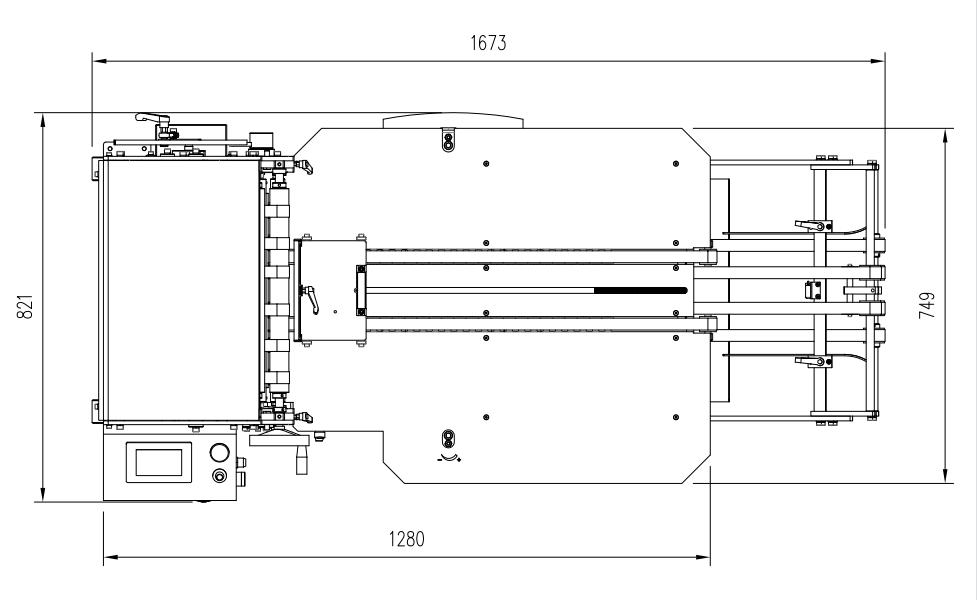

| Dimension | 1660x904x1450mm |
