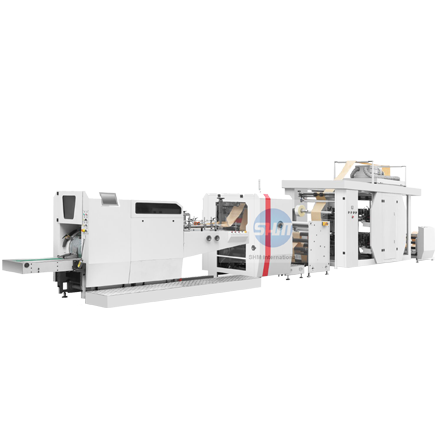

RZJD-G250J/G350J Full Auto V Bottom Paper Bag Machine
INTRODUCTION:
Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and so on, bag making process consist of puncture, side gluing, side folding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in one time. Our machine have advantage of easy operation, high effeciency, more steady, it is an ideal machine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruit paper bag and environment-friendly paper bag.
MAIN FEATURES:
1.Germany LENZE Touch screen human-computer interface, operate and control easily.
2.Germany original LENZE control,integrated with optical fiber, ensure high speed running steadily.
3.Available Germany LENZE Servo Motor Integrated With Germany Original SICK Rectifying Photo Sensor, ensure the printed paper length under tracking precisely.
4.Raw Material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy selectra, reduce adjustment time.
MAIN SPECIFICATIONS:
| Model | RZJD-G250J | RZJD-G350J |
| Speed | 30-300pcs/min | 50-650pcs/min |
| Cutting length | 110-460mm | 165-715mm |
| Tube length | 110-450mm | 160-710mm |
| Bag width | 70-250mm | 70-320mm |
| Gusset width | 20-120mm | 20-120mm |
| Bag mouth height | 15/20mm | 15/20mm |
| Material thickness | 35-80g/m² | 35-80g/m² |
| Scroll width | 160-780mm | 160-960mm |
| Scroll diameter | 1000mm | 1100mm |
| Scroll core diameter | 76mm | 76mm |
| Power supply | 3phase 380V 24kw | 3phase 380V 32.1kw |
| Air pressure supply | ≥0.12m³/min, 0.5-0.8MPa | ≥0.12m³/min, 0.5-0.8MPa |
| Weight | 4500kg | 6500kg |
| Dimension | 7100x3000x2200mm | 6800x2900x2000mm |
-
THE FLOW CHART:
