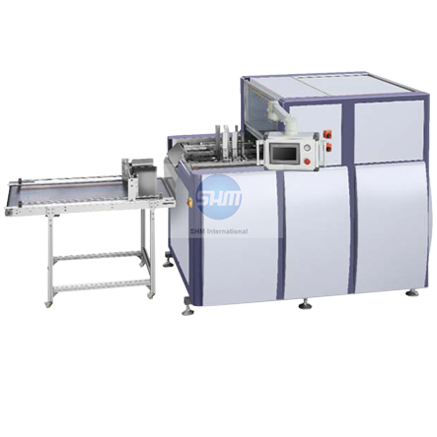

ZX400 Automatic Cross Grooving Machine
MAIN FEATURES:
1. With PLC programmed control, movable touch screen operation panel, digital knife position display; easy operation; Saving room area;
2. It has automatic cross grooving function, grooving twice with auto turning section. Saving manpower and time of feeding and turning, greatly upgrades production efficiency.
3. Adopting knife with multiple heads, saving time for loading and uploading. Supply together with professional Knife Grinder.
4. Suitable for cardboard, gray board, MDF these material, widely application.
5. Feeding correctly and remain flat. High precision; No dust, no blur, no deformation.
MAIN SPECIFICATIONS:
| Board size | Max.400x400mm Min.120x120mm |
| Board thickness | 1.0-3.0mm |
| Finished box height | ≧20mm |
| Grooving speed | 30-35 times/min |
| Power | 5.5kw 380V 3phase |
| Weight | 2500kg |
| Dimension | 3250x1620x1660mm |
